100 L Nutsche Filter System (3-in-1) by Cedarstone

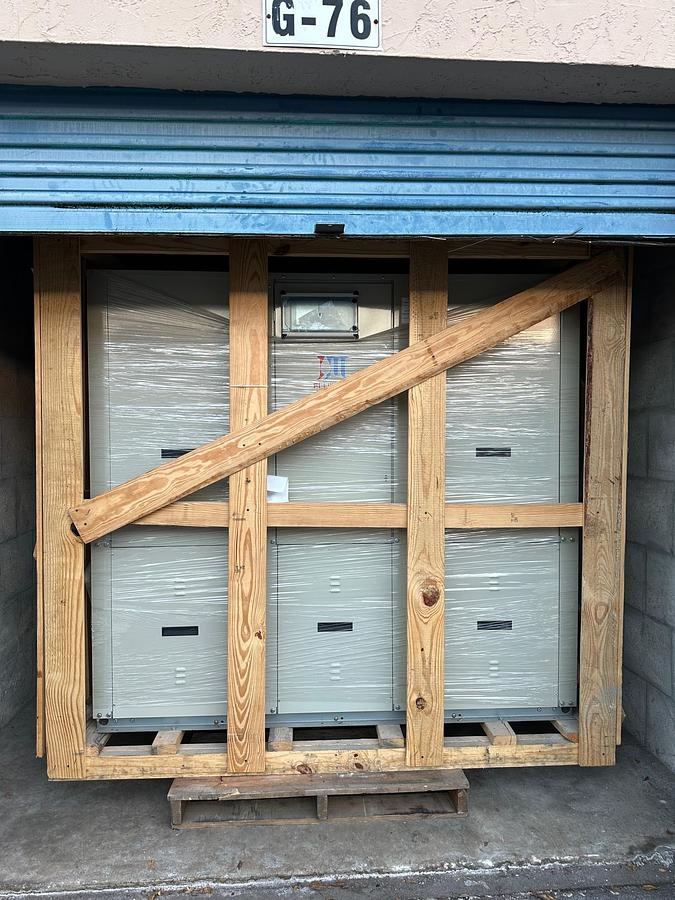

Brand new, still in original crates/pallets a complete Nutche Filter System by Cedarstone. The system includes the following:

System Includes:

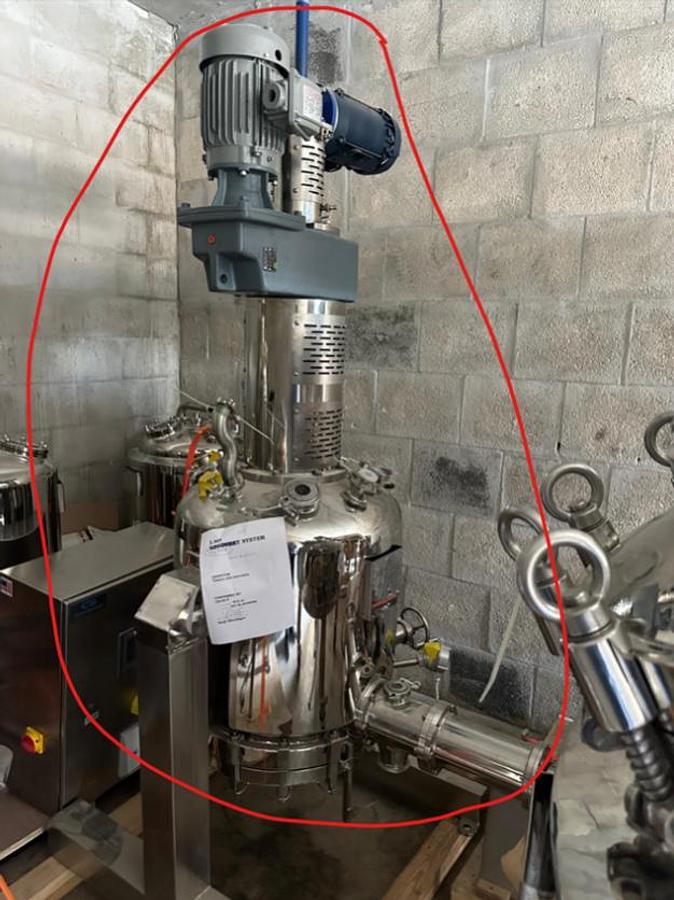

· Nutsche Filter Vessel - 100L

· 12kW Oil Temp Control System

· (2) 100 L Storage Tanks

· Agitation Motor & Gearbox

· Hydraulic station for up and down movement. · Temperature Sensor (RTD)

· NEMA 4X Controls (Safe Room Only)

· C1D1 Remote control Tablet

Key features and Specifications:

100L Nutche Filter System (3-in-1)

· Base Model MWP of 30 PSI with ASME U-Stamp.

· Designed to withstand -15 PSI (full vac) for vacuum situations.

· Designed and Fabricated to ASME Section VIII Code, Div 1.

· All wetted parts to be 316L Stainless Steel, non-Wetted to be 304SS.

· Filtration Area: 0.28 m2 (Filtration area size is customizable)

· Filter Pore Size: 1um - 200 um (Pore size is customizable)

· Spray assemblies for admitting filter cake washing and re-slurrying liquid as well as for CIP use.

· Our filters are optimal for processing ultra-high purity, pharmaceutical, and hazardous materials.

· Available in both standard as well as customizable compositions to suit your needs.

· Multiple application flexibility.

· Mobile on non-scuffing caster wheels.

· cGMP / CIP; Aseptic and Sterile Designs.

· 1% achievable final cake moisture content.

· A wide variety of pore-size and filter media options.

· Approximate Dimension: 5' OD x 11' H

12KW Oil Temperature Control Unit

· Model: T-1223MS

· Cabinet Type: Upright

· Fluid Type: Oil

· 6 Gallon Reservoir Tank

· Heating Capacity: 12KW

· Cooling: 4.0 Sq. Ft. Heat Exchanger · 1.5 HP Pump

·18gpm@50psi

· Voltage: 460V/3/60HZ

· Zones: 1

·Nema1
