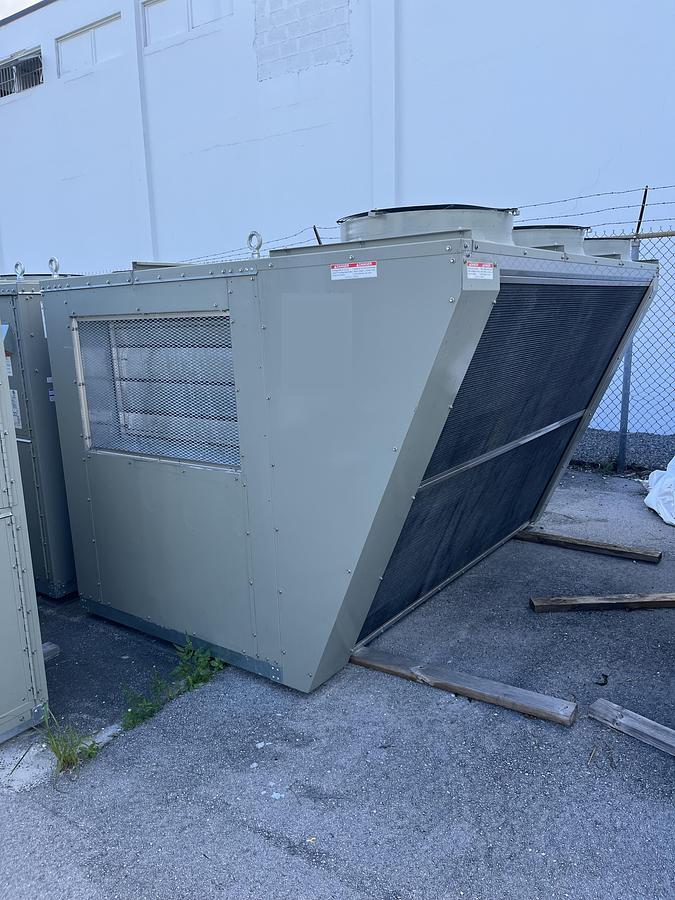

MODINE Air Cooled Roof Top HVAC (13 tons & 1885 CFM) Model RTU1-MPR13

Modine Air Cooled Roof Top Packaged Unit MPR –

Brand new, never installed or used. Seller does not need these units anymore for their processing operation. Great for climate control in any processing facility. Need more than one? There are a total of eight (8) similar sized units also for sale by the same seller.

Call/text for faster responses for any questions regarding these units

RUDER EQUIPMENT 425-358-0425

🔧 Unit Identification:

• Model Number: MPR13BD2A2B4R16D1ADNNNN
• Serial Number: S1135214A0312272-5184
• Wiring Diagram: 8H0074311398
• Unit Tag: RTU-1
• Voltage: 460 V
• Phase: 3
• Frequency: 60 Hz

❄️ Cooling System:

• Refrigerant: R-410A
• Estimated Cooling Capacity: 13 tons

⚡ Electrical Specifications:

• Minimum Circuit Amps (MCA): 32.0
• Max Overcurrent Protection (MOCP): 35.2
• Max Fuse Size: 45 Amps

💨 Air Movement:

• Supply Fan CFM: 2443 CFM
• External Static Pressure: 1.0 in wc

🌡 Electric Heat (Optional):

• Main Heat: 6 kW (460V, 24A)
• Aux Heat: 6 kW
• ERM Preheat & Hot Water Heat: Not applicable

📐 Required Clearances:

• Left Side: 36 in (91 cm)
• Right Side: 48 in (122 cm)
• Rear (Intake): 36 in (91 cm)
• Front (Controls): 48 in (122 cm)
• Base (to combustibles): 6 in (15 cm)

DIRECT FROM MANUFAC:

Overview:

The Modine MPR Air Cooled Roof Top Packaged Unit is a reliable, all-in-one HVAC solution designed for year-round climate control. These units are engineered for durability and performance, making them a solid choice for businesses looking to maintain a consistent, comfortable environment across various industrial or commercial spaces.

Key Features & Specs:

Unit Cabinet Construction:

• Exterior Casing parts shall be 18 gauge pre-painted G-90 galvanized steel with Coastal coat casing with electrostatically applied polyester powder coat paint finish. Finish shall be capable of withstanding a minimum 5,000 hour salt spray and fog atmosphere exposure in accordance with ASTM B117
• 100% O.A. Intake Hood with two position motorized damper
• Unit cabinet exterior and interior have factory applied Institu ES2® coating with 10,000 Hour Salt Spray rating per ASTM B-117 test procedures

Unit Controls include:

• (1) Carel Programmable Microprocessor controller programmed with Modine Controls
• System ® with stand alone operation with field configuration, setpoint adjustment, and
• scheduling accomplished at the unit.

Refrigeration system:

• Refrigerant circuits with Single Modulating Digital scroll compressor mounted on isolators for acoustical purposes.
• Refrigerant circuits include liquid line filter driers, TXV, crankcase heaters; high and low pressure cutouts and service fittings.
• Modulating Hot Gas Reheat with Varispeed® head pressure control lead circuit

Electric Power Section mounted in a unit enclosure:

• Single Point Power Connection
• Condensate Overflow Switch
• Circuit #1: 32 AMPs

Condenser Section Includes:

• Air cooled condenser with direct drive fans
• Copper tubes / aluminum fins
• Institu ES2® coating on condenser coils w/ 10,000 hr salt spray rating per ASTM
• B-117 test procedures

Filter section includes:

• 2” thick, Merv 10 2" thick primary filters

Coil Section Includes:

• DX evaporator coil with pitched stainless steel drain pan
• Coating on evaporator, hot gas reheat, condenser coils w/ 10,000 hr salt spray rating per ASTM B-117 test procedures

Fan Section Includes:

• Horizontal supply fan & motor assembly mounted on internal Spring Vibration Isolators
• High efficiency, ODP supply fan motor @ 460V/3/60
• Electric heater per schedule

Ideal For:

• Processing facilities (including food, beverage, and light industrial operations)
• Warehouses and distribution centers
• Commercial buildings or retail spaces
• Grow rooms or climate-sensitive storage areas

Why Choose This Machine?

If you're looking for a plug-and-play solution for climate control, the Modine MPR unit offers powerful, efficient performance with minimal hassle. Its rooftop design saves valuable indoor space, while its energy efficiency helps cut long-term utility costs. Whether you're upgrading an older HVAC system or outfitting a new facility, this unit delivers dependable performance where it matters most.
