Hydro-Logic® Hyperlogic® RO Custom Water Filtration System

Hydro-Logic® HyperLogic® Custom Water Filtration System, includes Plug n Play upgrade option and additional filter housing

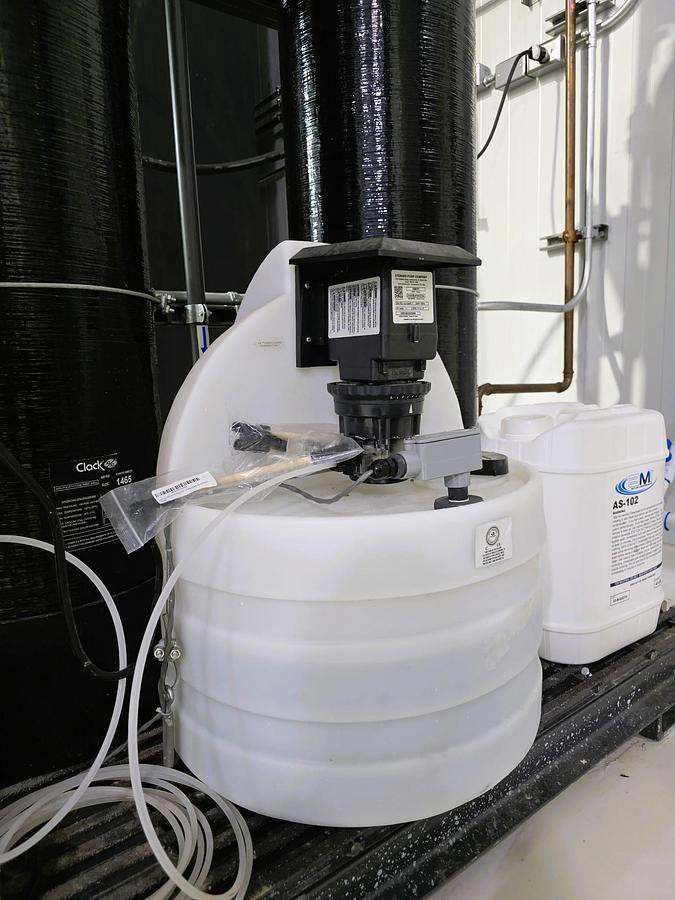

• Descaling Tub

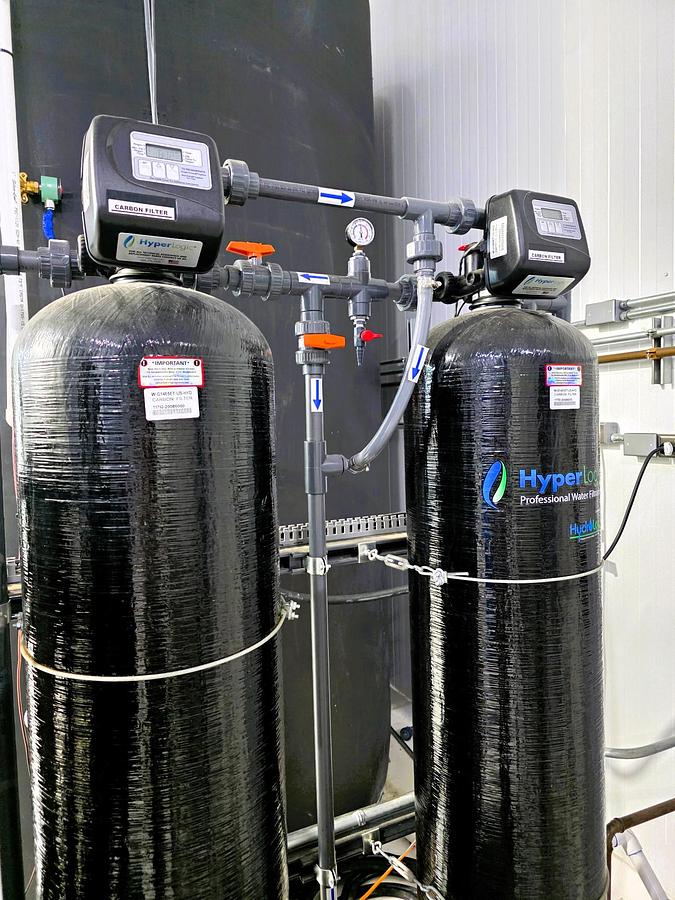

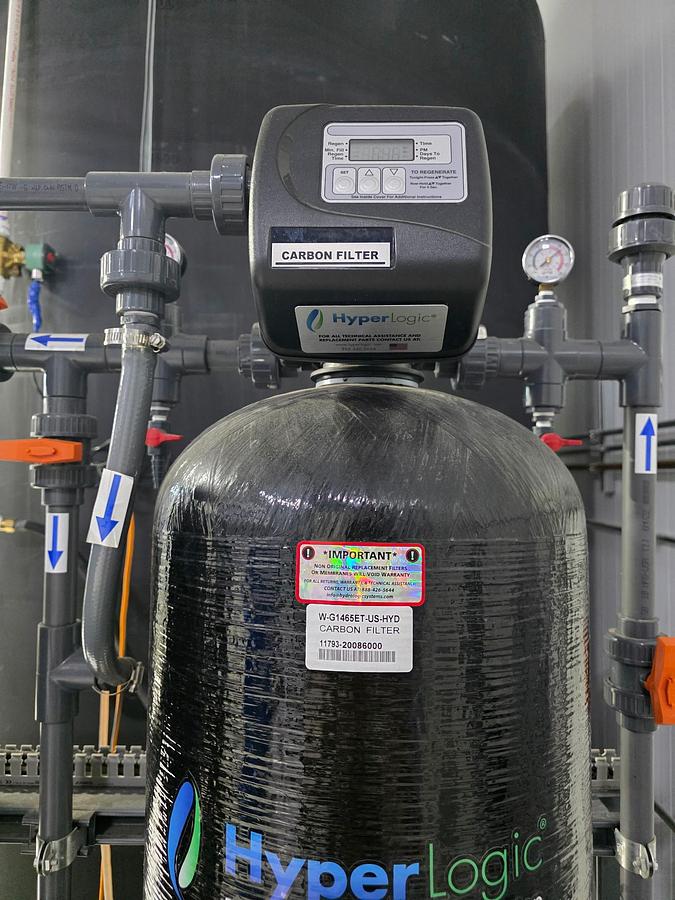

• (3) Carbon Filter housings

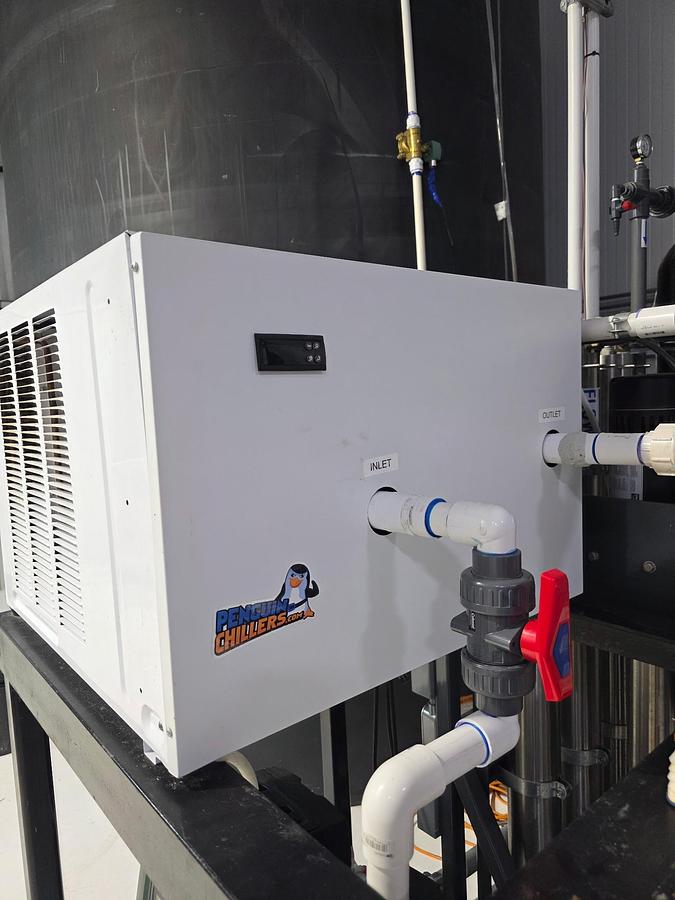

• Penguin Chiller

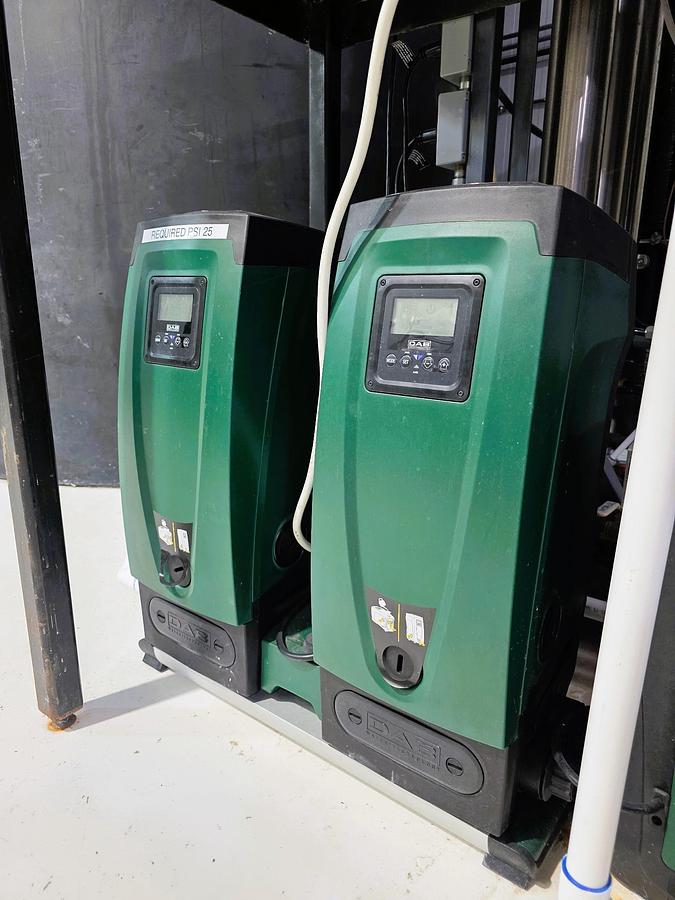

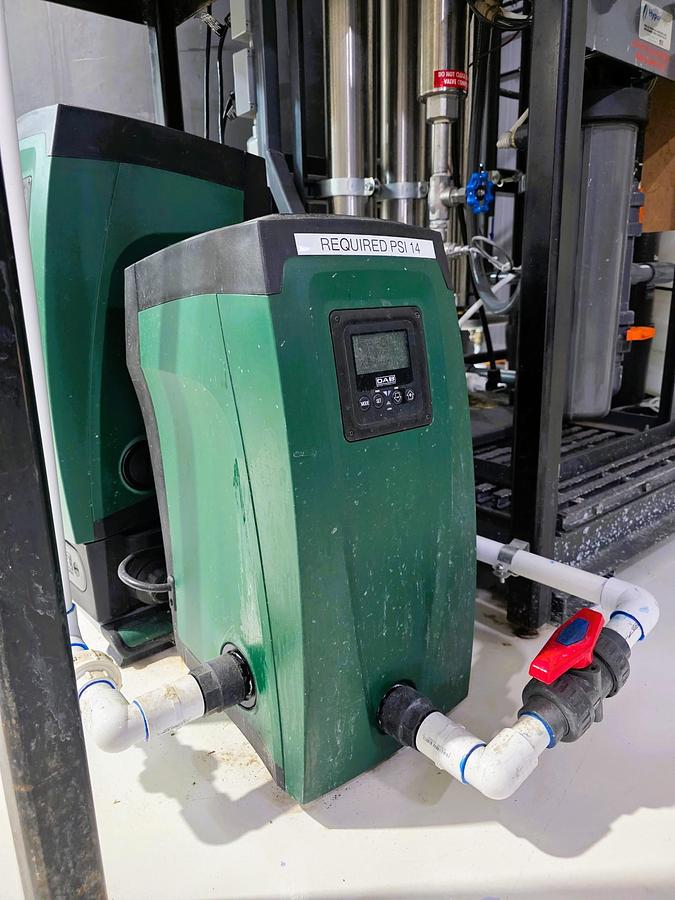

• (3) Water recirculation pumps
• Piping diameter is 1"
• Replacement filter housing included

Power Requirements:

Water Filtration Equipment:

• 220V, Single Phase, 60 Hz

• 1 Horsepower High Pressure Pump on RO Unit

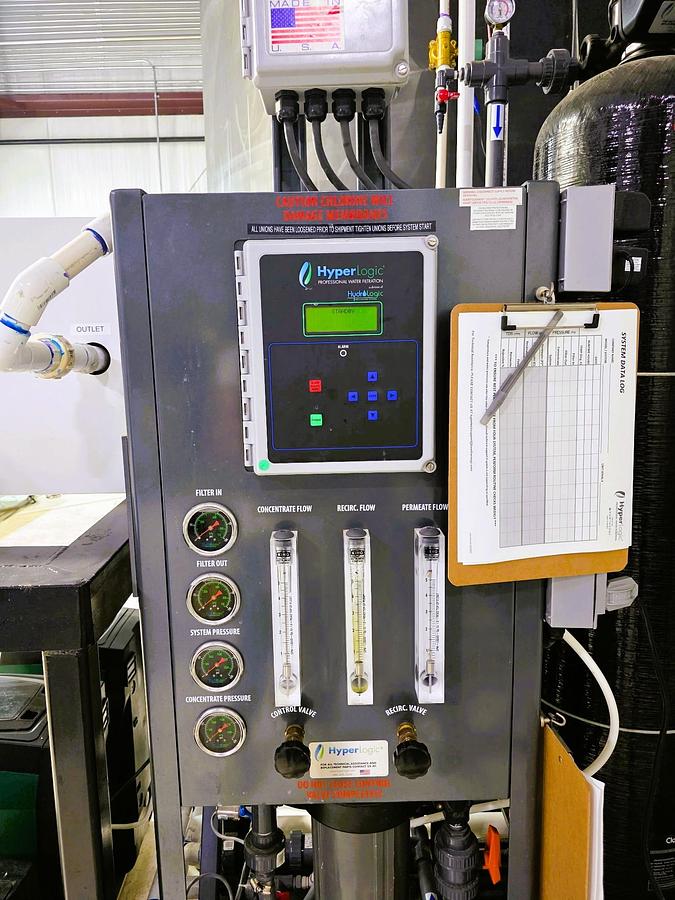

• HyperLogic RO Unit = 12.4 Amps

• Prefiltration = 2 Amps

• Total Amperage of Entire Skid System = 15 Amps

Dimensions:

• 30” Wide x 72” Long x 80” Tall

• System needs a 96” height clearance, a 24” clearance behind and to the left and right, and a 36”

clearance in front

Total Weight:

• Approximately 1,800 lbs.
