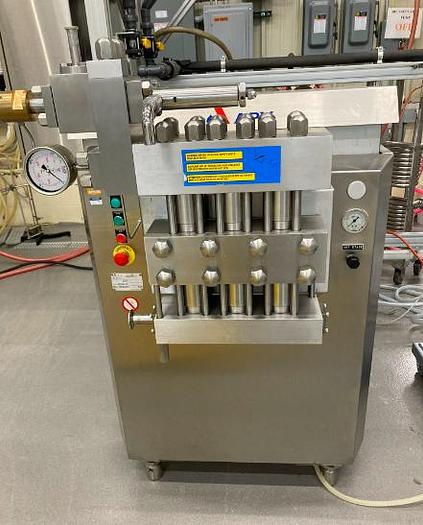

APV Rainnie R15 Homogenizer - 14,500 PSI Max Pressure

APV Rainnie R15 Homogenizer - 14,500 PSI Max Pressure

$96,500 (USD)

Colorado

orCall +1 425-358-0425

Description

Never used, high pressure homogenizer by APV Rainnie Model R15. This homogenizer has had serveral owners, but no product was every ran through the machine. Only water for testing and dialing in controls. It was refurbished with new parts and pieces late 2023 and in excellent working condition. Machine comes with motor starter, as well.


MAX pressure is 14,500 PSI. Great unit for creating emulsions. Can create water soluble emulsions by using oil in water techniques. Ingredient and process consulting available with purchase of unit!


APV-Rannie Model R15-16.56X Homogenizer

Frame: Stainless Steel Skin over Cast-Iron/Tube-Steel Frame

Current Capacity: 71 GPH (270 LPH)

Max Pressure: up to 14500 PSI (1000 bar)

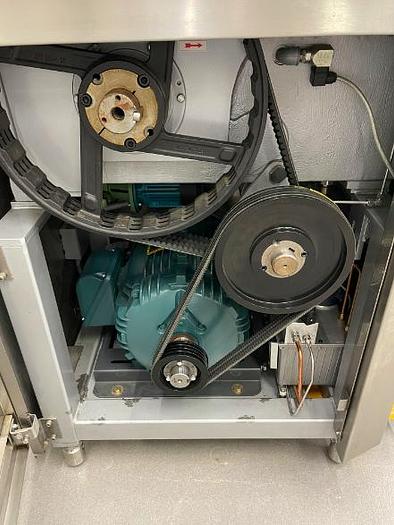

Motor: 15HP, TEFC, 230/460V, 3Ph

Valves: Ball Style

Valve Seats: Removeable/Reversible

Feature: Aseptic-style Flush for Plunger Lubrication

Configuration: Single-Stage, Cell-Disruption ( CD ) Homogenizer, Ceramic Materials, Hydraulic/Mechanical Actuator

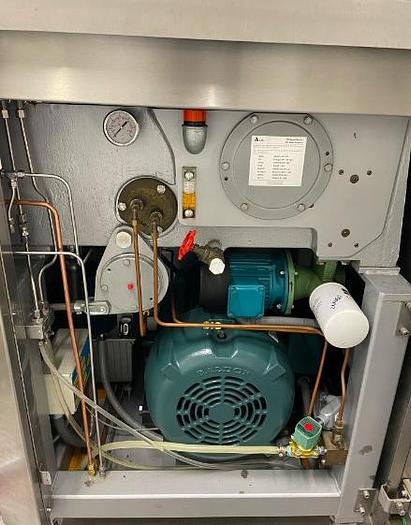

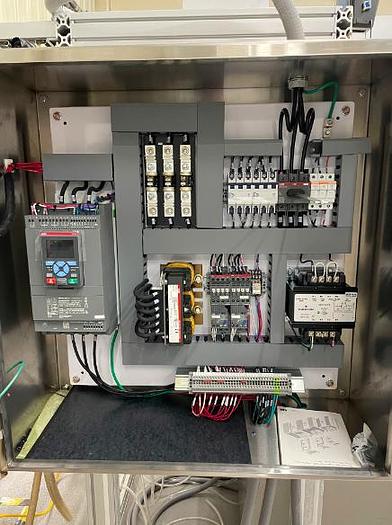

Automation: A professionally built SoftStart control panel is included to operate the homogenizer along with its internal subsystems (lube oil and hydraulic power).  Currently configured for 230VAC, but can support 208-600V.

Incredibly Low Hours


Specifications

ManufacturerAPV Rannie
ModelR15
Year2023
ConditionRefurbished
Frame:Stainless Steel Skin over Cast-Iron/Tube-Steel Frame
Current Capacity:71 GPH (270 LPH)
Max Pressure:up to 14500 PSI (1000 bar)
Motor:15HP, TEFC, 230/460V, 3Ph
Valves:Ball Style
