Tablet Counter - Dual Lane DT Merrill MDL 40-39 ADH

Tablet Counter - Dual Lane DT Merrill MDL 40-39 ADH

$17,000 (USD)

Location:Michigan

Description

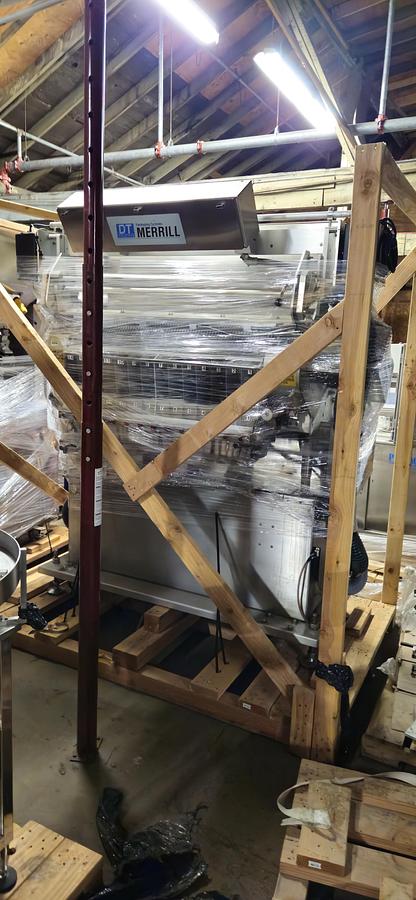

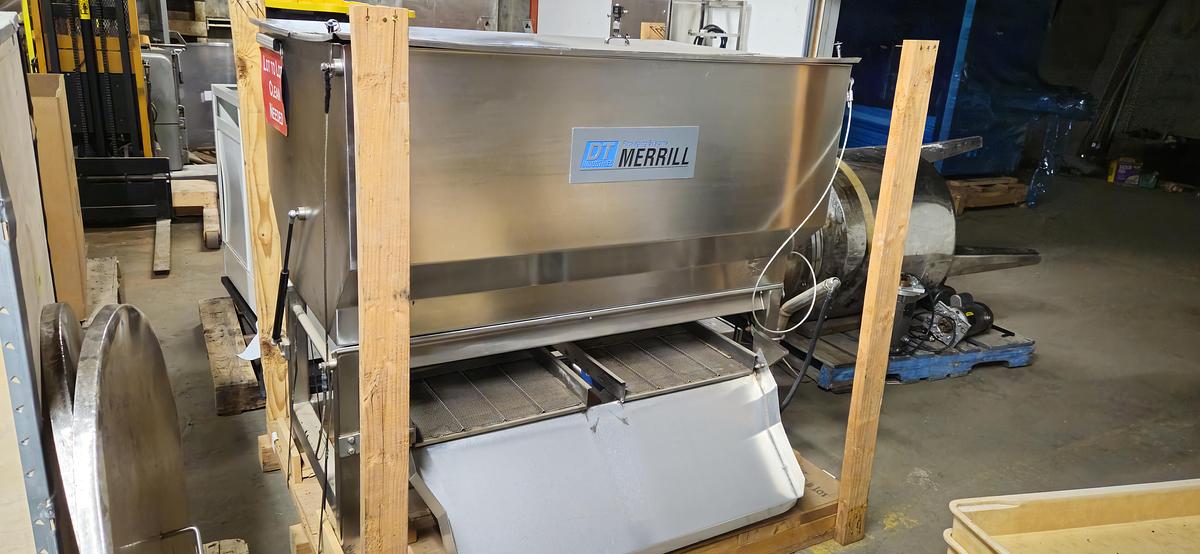

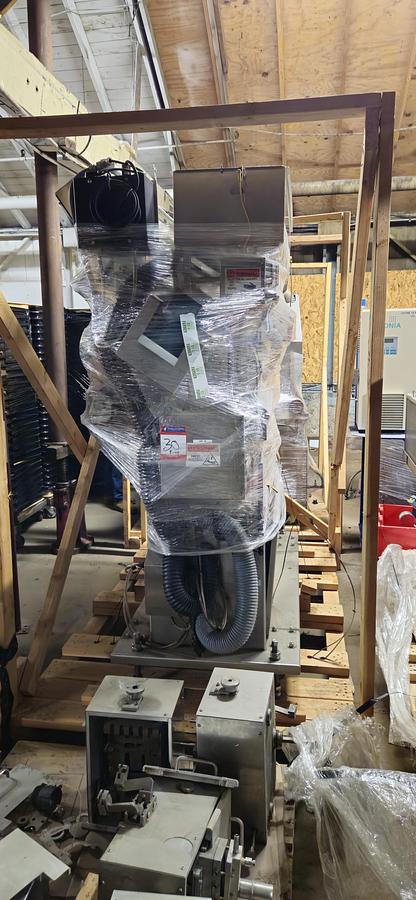

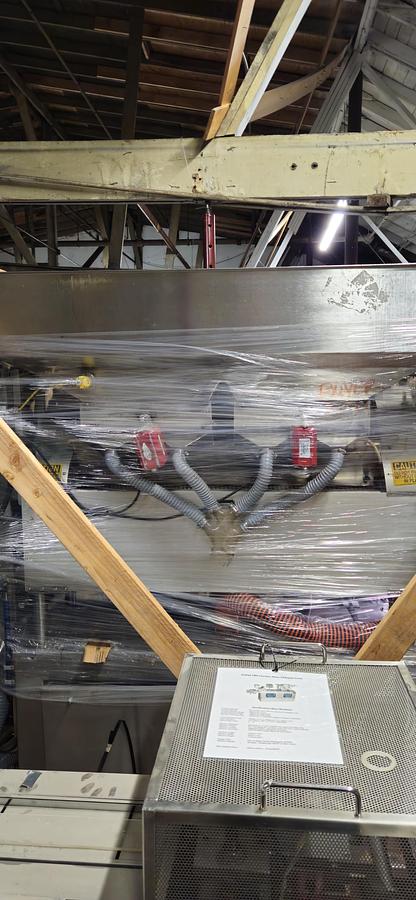

DT Industries Merrill MDL 40-39ADH Dual Lane Slat Counter with Hopper, Conveyor, and Electronic Lift

(1) Used DT Industries Merrill MDL 40-39ADH Dual Lane Slat Counter with Hopper and Conveyor

MDL: 40-39

S/N: 834

Tooling is complete and sized for #00 with no spare sets.

The machine is rated at up to 300 (100-count bottles per minute) and it's all stainless steel.

Allen Bradley PLC controls.

Dual lane screw feed system with conveyor and indexing system.

37 cfm at 80 psi.

3/60/460V.


Dimensions:

  • Slat Counter: 40" x 6' x 88"

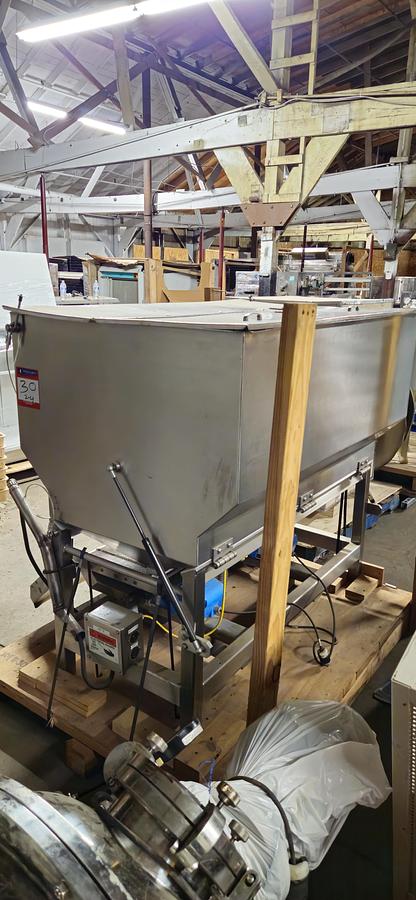

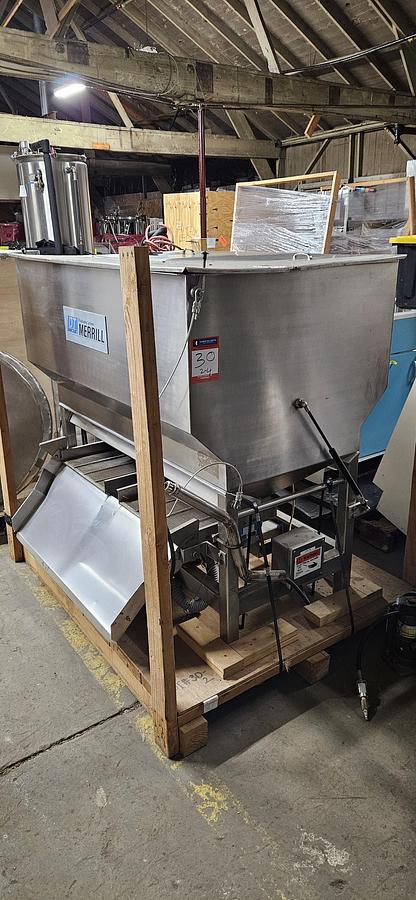

  • Hopper: 44" x 5' x 50"

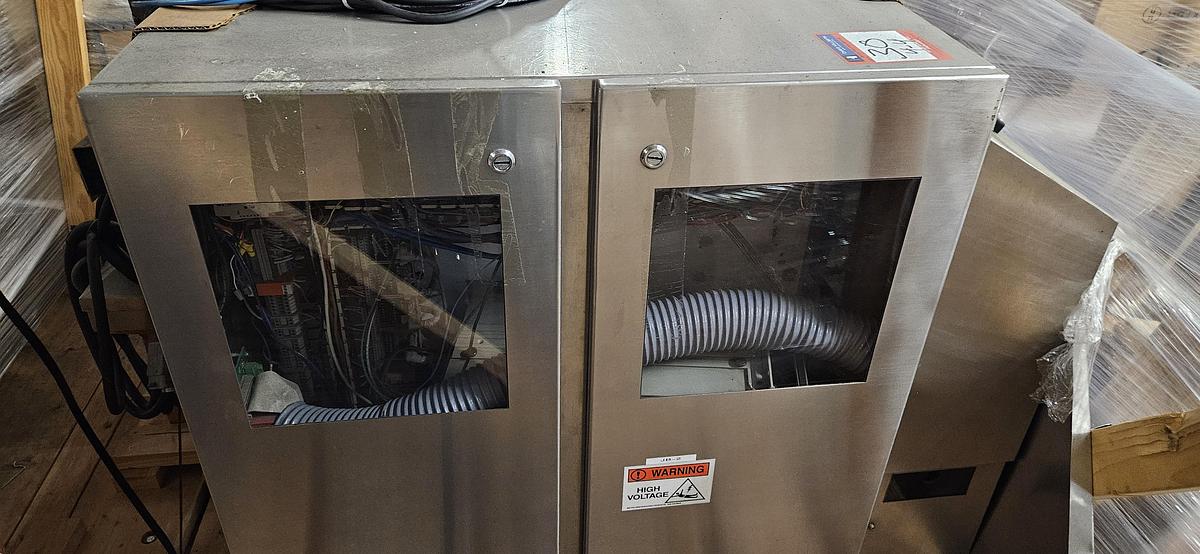

  • Control/PLC: 7' x 6' x 75"
  • Conveyor: 19' x 44" - 7.5" Belt Width


General Info:

A counter slat machine is a pill, tablet, or capsule counting machine which uses slats as a way to count out the appropriate number of tablets. The horizontal slats are powered around a track and have a number of holes cut into them equivalent to the number of tablets or containers the machine needs to fill. The size of the holes is specific to the tablets the machine is filling so that only one tablet can fit into a hole. As the slat passes under the product hopper, one and only one tablet falls into the hole in the slat. The slat is then powered around to where the slat is now upside down and the tablet falls out of the hole in the slat and into a funnel, which guides it to a waiting container. Once the proper number of tablets has been dispensed to the containers, these containers are released and a new set of containers is indexed underneath the machine.


Counter for tablets and capsules by DT Lakso 450 Reformer Model 93 w/ Conveyor, Hopper & Elevator

(1) Used Counter for tablets and capsules by DT Lakso 450 Reformer

Model: 93 w/ Conveyor, Hopper & Elevator

MDL: 93 S

S/N: 426


Electrical:

  • Volts: 208
  • Phase: 3
  • Hz: 60
  • CB Rating: 15A


Dimensions:

  • Slat Counter: 5.5' x 5' x 7'
  • Hopper: 3.5' x 5' x 6'
  • 5 Lane drops
  • Includes 75 slats, one set of slats for #00


Includes:

  • MANUAL
  • DT Industries Lakso Bottle Conveyor
  • MDL: 60
  • Machine #: 812
  • Dimensions: 17' Length


Tooling Size for Bottle Conveyor:

150–175cc packer bottle (adjustable)


Auger Screw with Hopper – 7' Screw, 4" Diameter

1 Used Auger Screw with Hopper

  • 4 view ports on lids
  • Good for powders, seeds, nuts, and leaves
  • All stainless steel and cleanable


Screw Dimensions:

7' Long x 4" Diameter

Specifications

ManufacturerDT Merrill
Model40-39 ADH
Year2020
ConditionUsed
Stock Number00075
