Axon Heat Shrink Tunnel EZ-36 with EZ-100 Shrink Sleeve Applicator

Axon Heat Shrink Tunnel EZ-36 with EZ-100 Shrink Sleeve Applicator

$19,500 (USD)

Location:Michigan

Description

The Axon EZ-36 heat shrink tunnel bundled with the Axon EZ-100 Shrink Sleeve Applicator with conveyor belt! Gently used in a GMP food/beverage facility. Fully operational, see specs below:


Overview:

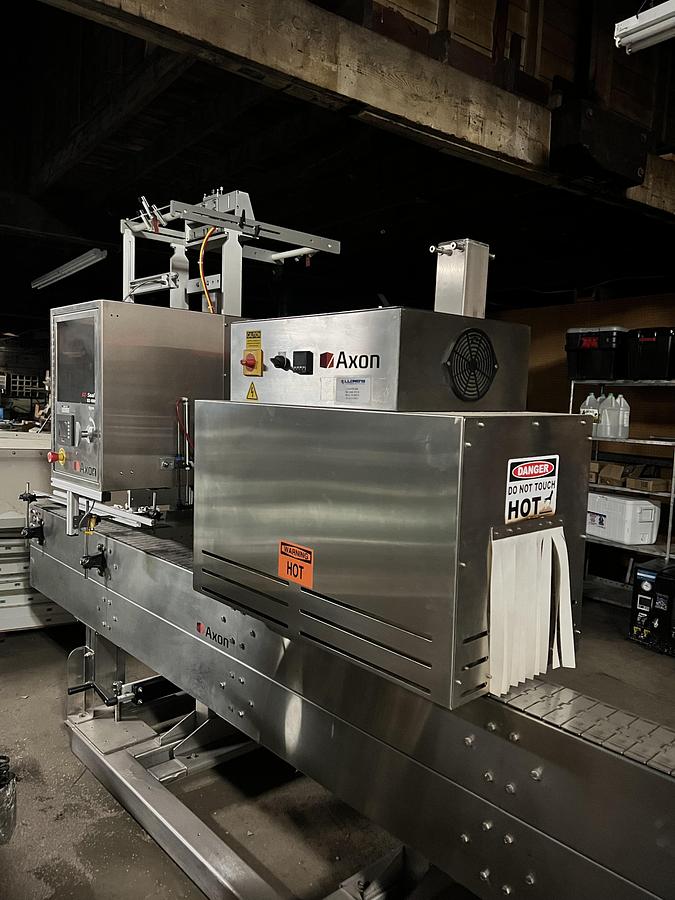

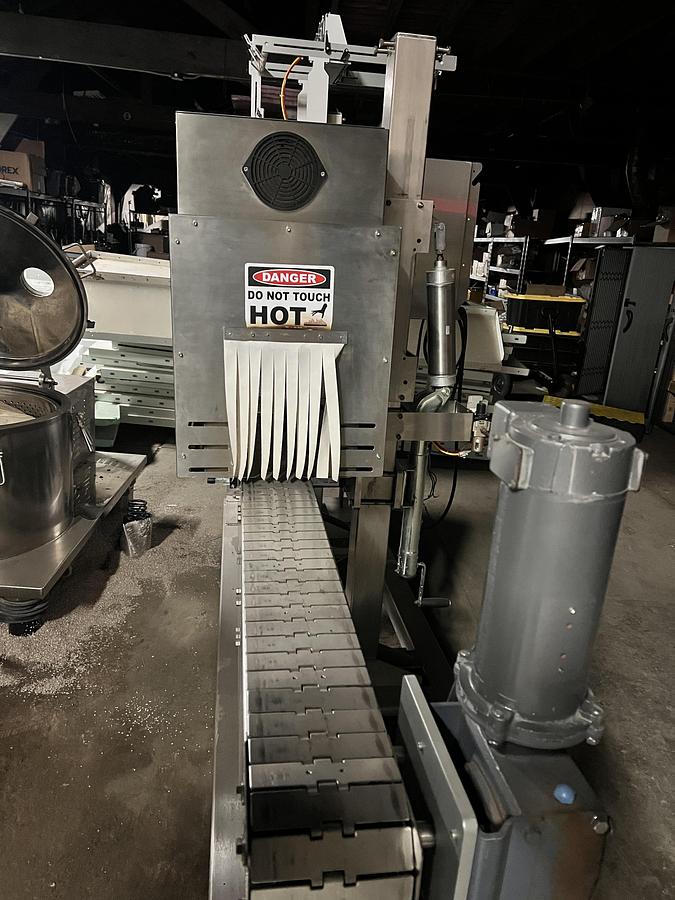

The heat shrink tunnel is a high-performance, convection-style heat shrink tunnel engineered for precise application of shrink sleeves and tamper-evident bands. With stainless steel construction and sanitary design, it's ideal for food, beverage, pharmaceutical, and cosmetic production lines.



Key Features:

  • Tunnel Length: 36 inches
  • Aperture Size: 7.5" wide x 6.75" high
  • Heating Method: Recirculating forced-air convection with electric tubular heaters
  • Temperature Control: Digital controller for accurate heat management
  • Construction: All stainless steel with double-wall insulation for safe exterior temps
  • Mounting: Cantilevered floor stand, easily integrates over conveyors
  • Height Adjustability: Accommodates a range of container sizes




Overview:

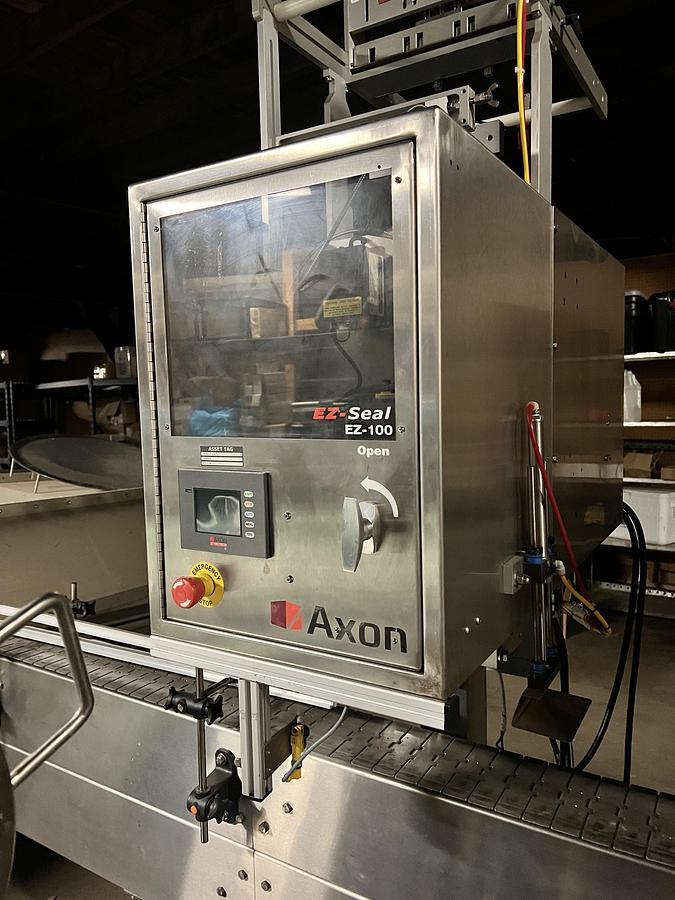

The Axon EZ-100 is a versatile, compact shrink sleeve applicator designed for precise application of full-body, partial, or tamper-evident shrink labels. Built for efficiency and reliability, it's ideal for operations requiring automated, high-speed sleeve placement in a small footprint.


Key Features:

  • Application Speed: Up to 100 containers per minute
  • Label Types: Compatible with full-body, partial-body, and tamper-evident sleeves
  • Material Compatibility: Works with PVC, PETG, OPS, and PLA sleeve materials
  • Construction: Stainless steel frame with anodized aluminum components for cleanroom or production floor use
  • User Interface: Touchscreen HMI with programmable settings for quick changeovers
  • Servo Motors: Precise film control and cutting accuracy
  • Film Handling: Tool-less film threading with integrated unwind stand

Specifications:

  • Max Container Diameter: Up to 3.5 inches
  • Max Container Height: Up to 10 inches
  • Electrical: 230V, 3-phase, 50/60 Hz
  • Air Requirements: 80 PSI, clean dry air
  • Footprint: Approx. 48" L x 36" W x 72" H




Specifications

ManufacturerAxon
ConditionUsed
Stock Number00091
* Conveyor Speed0–30 ft/min, infinitely variable
