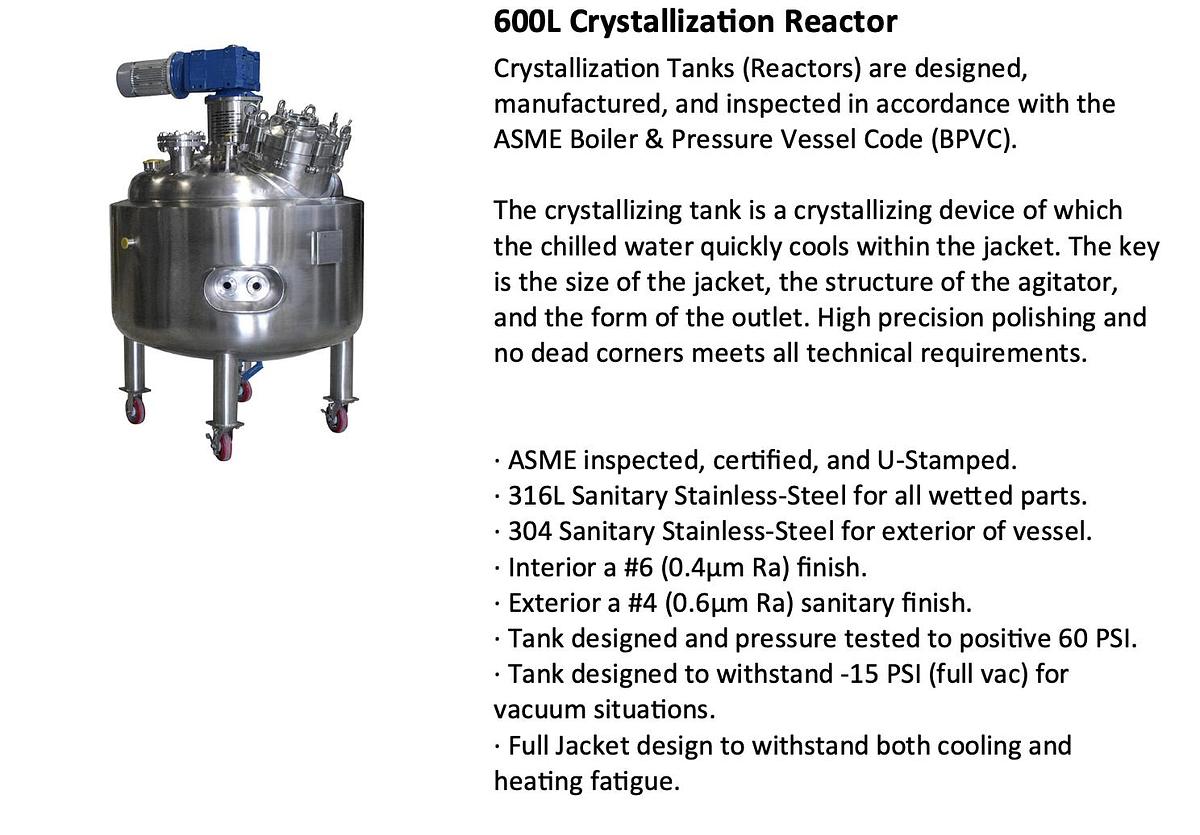

600L Crystallization Reactor Specs and Key Features

Crystallization Tanks (Reactors) are designed, manufactured, and inspected in accordance with the ASME Boiler & Pressure Vessel Code (BPVC).

The crystallizing tank is a crystallizing device of which the chilled water quickly cools within the jacket. The key is the size of the jacket, the structure of the agitator, and the form of the outlet. High precision polishing and no dead corners meets all technical requirements.

· ASME inspected, certified, and U-Stamped.

· 316L Sanitary Stainless-Steel for all wetted parts.

· 304 Sanitary Stainless-Steel for exterior of vessel.

· Interior a #6 (0.4μm Ra) finish.

· Exterior a #4 (0.6μm Ra) sanitary finish.

· Tank designed and pressure tested to positive 60 PSI. · Tank designed to withstand -15 PSI (full vac) for vacuum situations.

· Full Jacket design to withstand both cooling and heating fatigue.

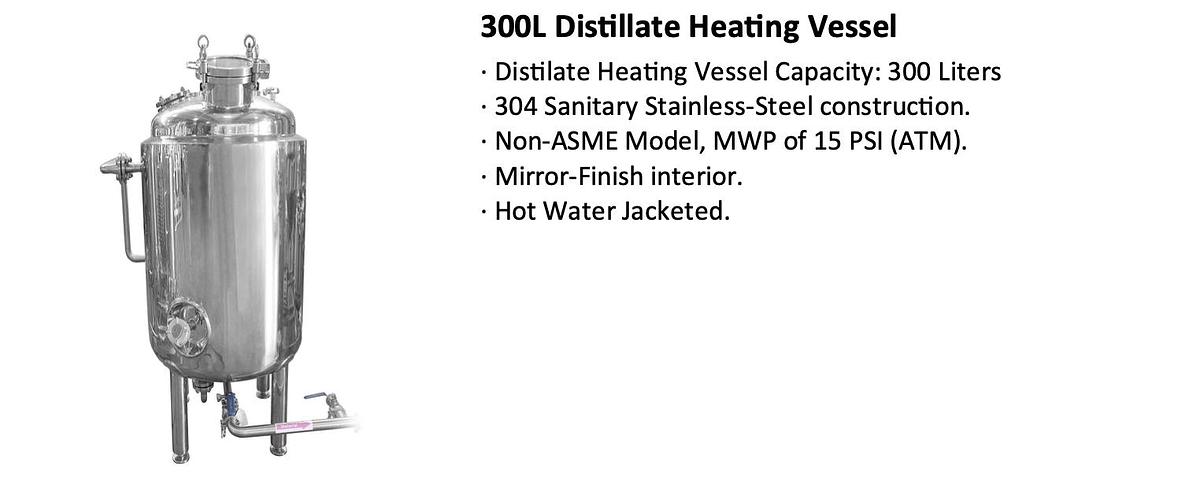

300L Distillate Heating Vessel

· Distilate Heating Vessel Capacity: 300 Liters · 304 Sanitary Stainless-Steel construction.

· Non-ASME Model, MWP of 15 PSI (ATM).

· Mirror-Finish interior.

· Hot Water Jacketed.

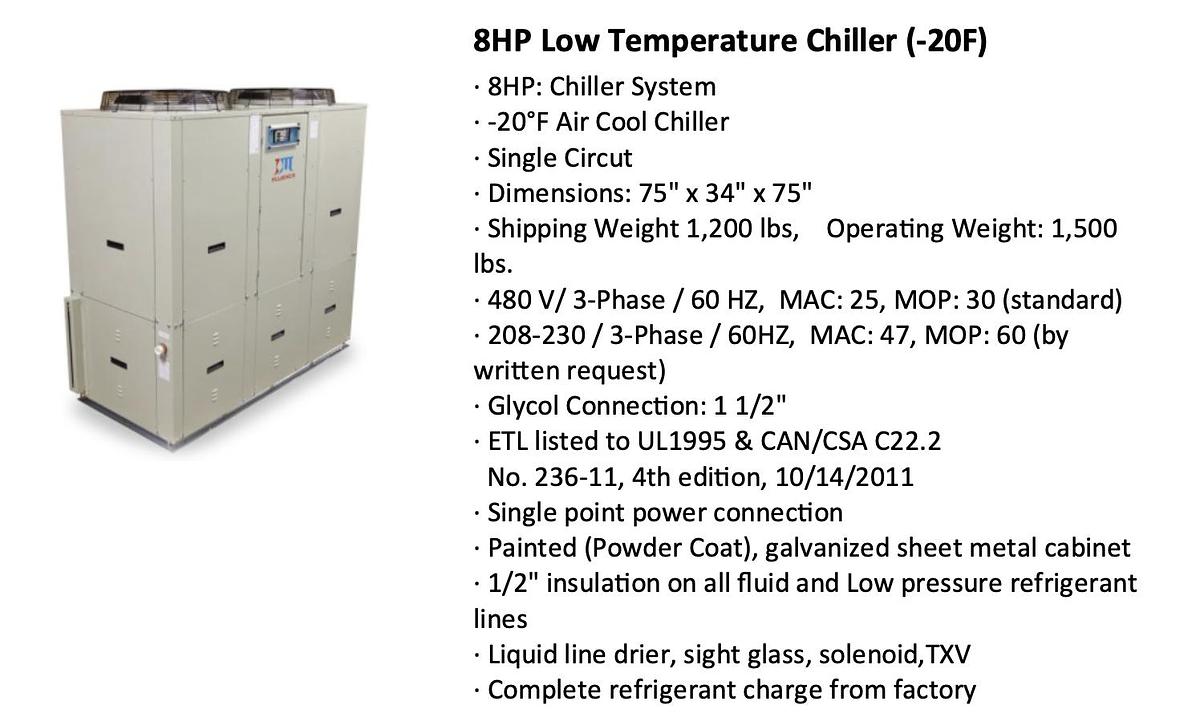

8HP Low Temperature Chiller (-20F)

· 8HP: Chiller System

· -20°F Air Cool Chiller

· Single Circut

· Dimensions: 75" x 34" x 75"

· Shipping Weight 1,200 lbs,

lbs.

· 480 V/ 3-Phase / 60 HZ, MAC: 25, MOP: 30 (standard) · 208-230 / 3-Phase / 60HZ, MAC: 47, MOP: 60 (by written request)

• ·  Glycol Connection: 1 1/2"
• ·  ETL listed to UL1995 & CAN/CSA C22.2
• No. 236-11, 4th edition, 10/14/2011
• ·  Single point power connection
• ·  Painted (Powder Coat), galvanized sheet metal cabinet
• ·  1/2" insulation on all fluid and Low pressure refrigerant lines
• · Liquid line drier, sight glass, solenoid,TXV
• · Complete refrigerant charge from factory

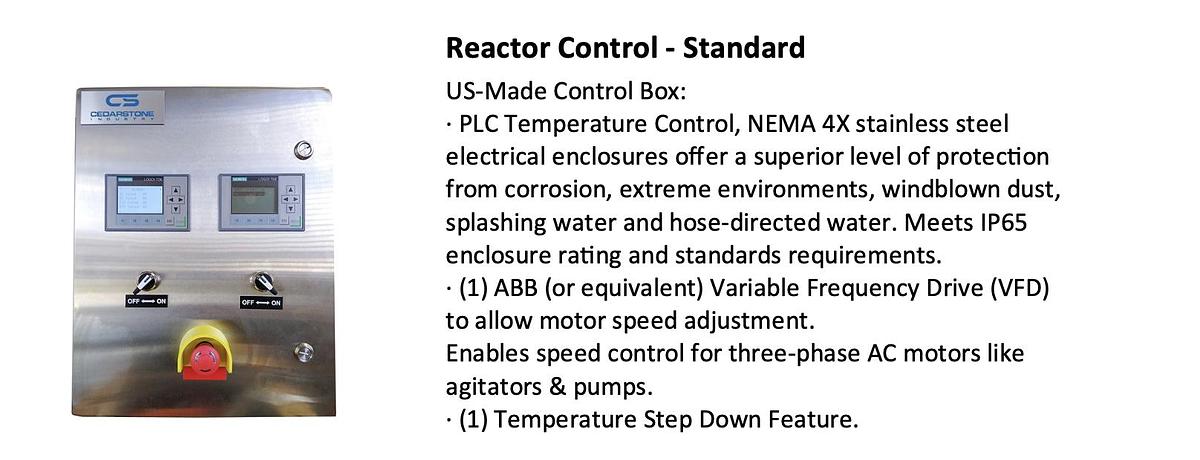

Reactor Control - Standard

US-Made Control Box:

· PLC Temperature Control, NEMA 4X stainless steel electrical enclosures offer a superior level of protection from corrosion, extreme environments, windblown dust, splashing water and hose-directed water. Meets IP65 enclosure rating and standards requirements.

· (1) ABB (or equivalent) Variable Frequency Drive (VFD) to allow motor speed adjustment.

Enables speed control for three-phase AC motors like agitators & pumps.

· (1) Temperature Step Down Feature.

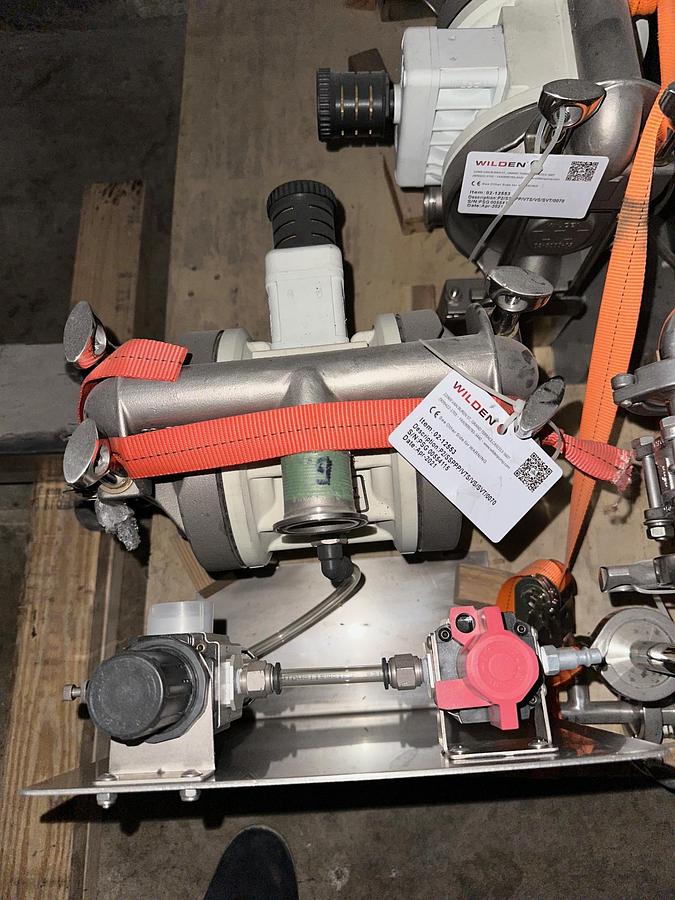

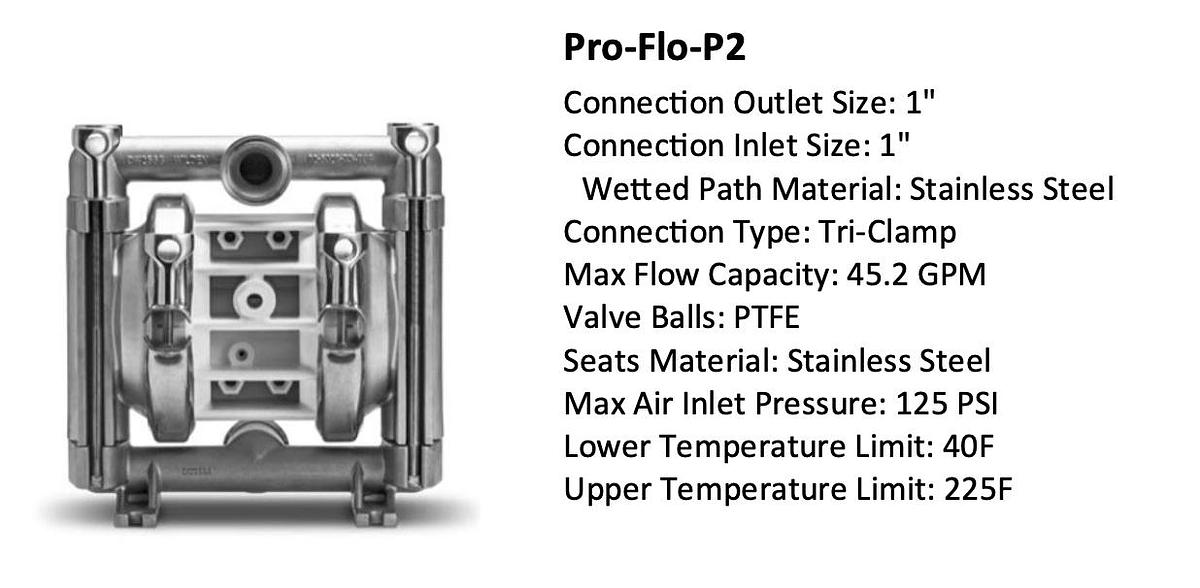

Pro-Flo-P2 Pump

Connection Outlet Size: 1" Connection Inlet Size: 1"

Wetted Path Material: Stainless Steel Connection Type: Tri-Clamp

Max Flow Capacity: 45.2 GPM

Valve Balls: PTFE

Seats Material: Stainless Steel Max Air Inlet Pressure: 125 PSI Lower Temperature Limit: 40F Upper Temperature Limit: 225F

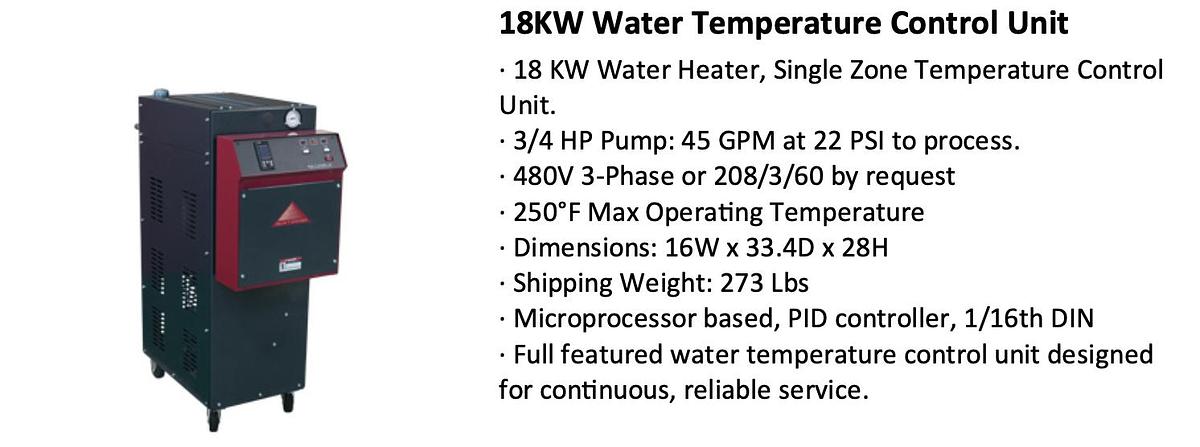

18KW Water Temperature Control Unit

· 18 KW Water Heater, Single Zone Temperature Control Unit.

· 3/4 HP Pump: 45 GPM at 22 PSI to process.

· 480V 3-Phase or 208/3/60 by request

· 250°F Max Operating Temperature

· Dimensions: 16W x 33.4D x 28H

· Shipping Weight: 273 Lbs

· Microprocessor based, PID controller, 1/16th DIN

· Full featured water temperature control unit designed for continuous, reliable service.
