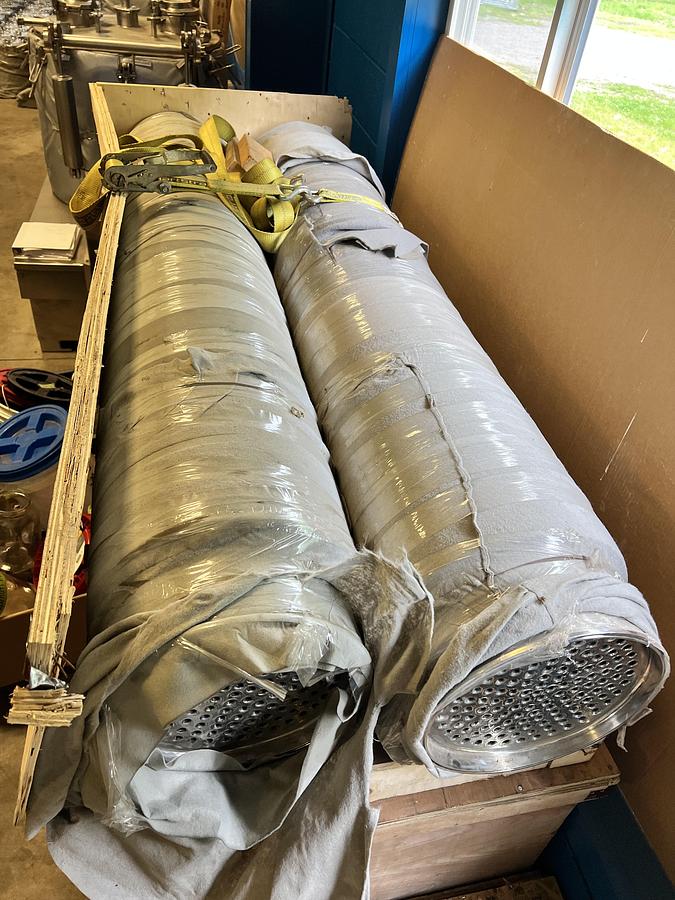

(6) Jacketed Condensing Columns (Tri-Clamp Heat Exchangers) 12"x72" - Brand New

These are brand new, never used, 12" x 72" jacketed condensing columns — specifically heat exchangers or condensers — designed for process applications where vapor needs to be condensed into liquid using a cooling fluid.

Key Details:

• Type: Jacketed Condensing Columns (also referred to as shell-and-tube heat exchangers)
• Dimensions: 12" diameter x 72" length
• Tube Pattern: 3/8" tubes with 3/8" spacing, typical for efficient heat exchange
• Connections:
• Two 1/2" FNPT ports for vacuum jacket
• Two 3" tri-clamp ports (top and bottom) for fluid connections
• 1/2" FNPT ports on the front jacket, 90° from the tri-clamp ports
• Baffles: Internal baffles included for better vapor distribution and condensation efficiency
