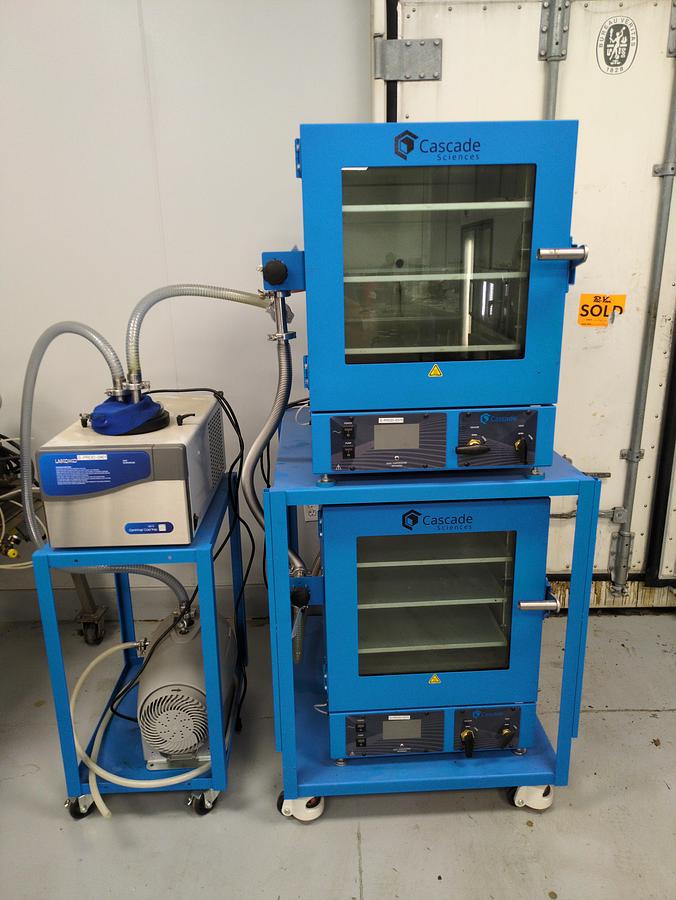

Cascade CVO-5 DOUBLE UP Vacuum Oven Package w/ MAXTRAP -50C and Pump

Cascade CVO-5 DOUBLE UP Vacuum Oven Package w/ MAXTRAP -50C and Pump

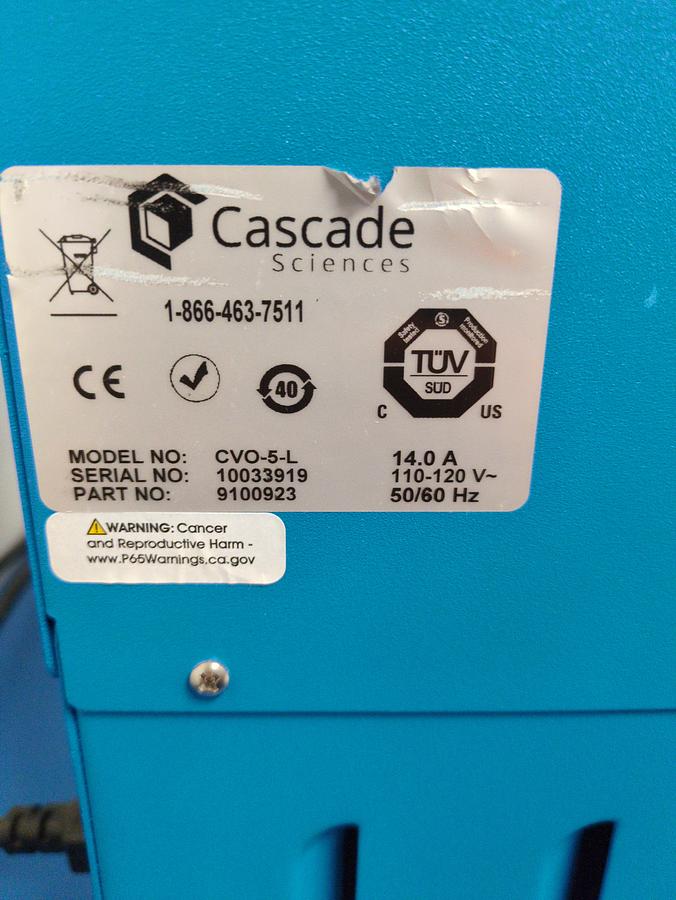

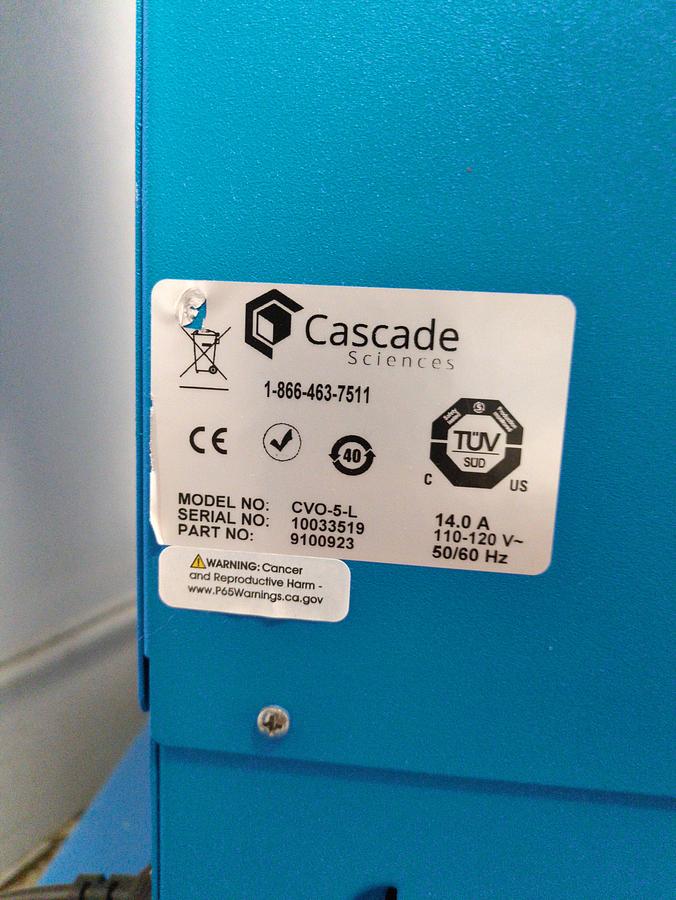

Model CVO-5

VOLUME:4.5 Cubic Ft. (127 Cubic Liters)

SHELVING:Includes 5 removable, adjustable (recommend 8 MAX)Surface Area: 18″W x 24″D

Weight Capacity: 50 lbs (22.7Kg)Aluminum

OVEN INTERIOR:18”W x 24”D x 18”H457mm x 609mm x 457mm

OVEN EXTERIOR:33.3” W x 38.6” D x 31.8”H846mm x 980mm x 808mm

WEIGHT:360 lbs / 163.3 Kg

TEMPERATURE RANGE:Operating Range: Ambient +14.4°C to 150°C / +26°F to 302°F

TEMPERATURE UNIFORMITY:@ 105°F +/- 2.0°F@ 200°F +/- 3.6°F@ 300°F +/- 5.5°F

@ 40°C +/- 1.0°C@ 90°C +/- 2.0°C@ 150°C +/- 3.0°C

TEMPERATURE STABILITY:@ 105°F +/- 0.2°F@ 200°F +/- 0.4°F@ 300°F +/- 0.2°F

@ 40°C +/- 0.1°C@ 90°C +/- 0.2°C@ 150°C +/- 0.1°C

HEAT UP FROM AMBIENT TO STABILIZATION TIME:To 105°F (40°C) 60 minutesTo 200°F (90°C) 126 minutesTo 300°F (150°C) 180 minutes (170 minutes for 220V version)

COOL DOWN TIME:From 105°F (40°C) 345 minutesFrom 200°F (90°C) 285 minutesTo 300°F (150°C) 335 minutes (460 minutes for 220V version)

*Temperature performance specifications are preformed in empty ovens. Performance can vary in ovens containing product, ambient lab conditions.

VACUUM VALVE:¼ Turn Lever

VENT VALVE:¼ Turn Lever

INTERIOR LIGHTING:LED Strips (Rated to 150°C)

GLASS WINDOW:Tempered NGI-US to ANSI Z97.1.2007

VACUUM GAUGE:Digital, selectable to read in inches mercury (Hg) or torr, barr

CONTROLLER:Touch ScreenAccurate Within 1°FIndependent Overtemp FailsafeEasy updates with USB port

PORTS (REAR):Vacuum = 3/8^th BarbVent = ¼” BarbAuxiliary KF-25 Port

INERT GAS INTRODUCTION:¼” Vent Barb15 psi max inlet pressure

POWER:110V – 120V / 1ph / 14A 50/60HzCord IncludedNEMA 5-15 Power Outlet

1105 BTU/hrRating at max power

220V – 240V / 1ph / 7A 50/60Hz AvailableCord IncludedNEMA 6-15R Power Outlet

1228 BTU/hrRating at max power

INCLUDED ACCESSORIES:5 Shelves20 Clips4 Leveling FeetPower Cord

DOOR GASKET:18” x 18” Cured SiliconeTemp Silicone rated to 446°F(230°C)

SHIPPING DIMENSIONS:41”L x 41”W x 45”HClass 85Shipping Weight: 449 lbs / 204 Kg

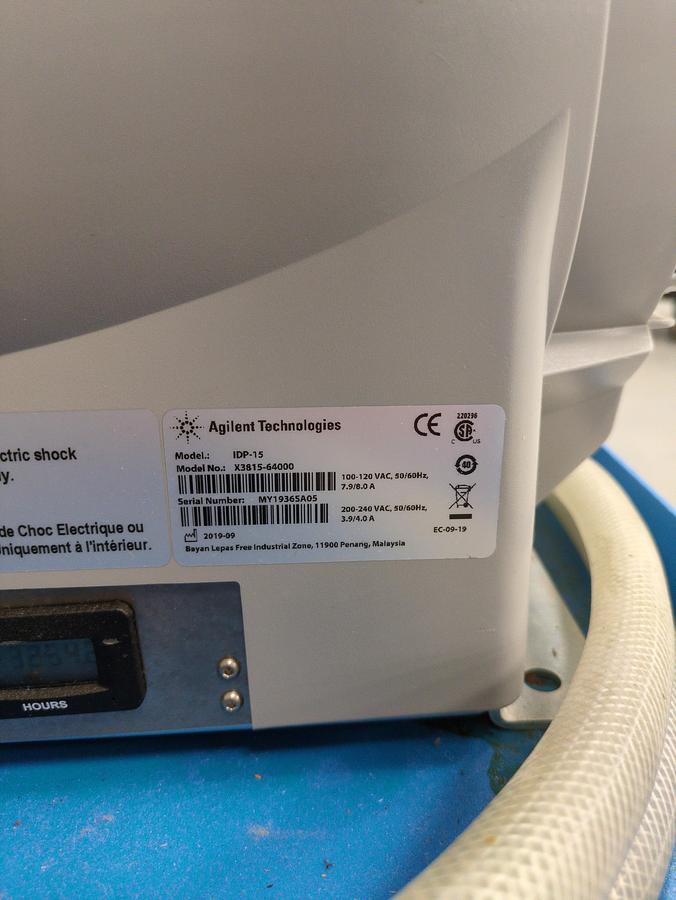

Agilent IDP15 Oil-Free Scroll Pump

PUMP TYPE:Oil-Free, Scroll

PUMPING SPEED:9 CFM

ULTIMATE PRESSURE:10 x 10^-3 Torr

POWER:120V / 1ph (220V available)

INTAKE CONNECTION: KF-25

DIMENSIONS (L X W X H):19.08” x 9.22” x 14.3”

WEIGHT: 75 lbs

MAXTRAP -50°C/-105°C Cold Trap

POWER:115V / 1ph / 3 AMP (60Hz)Cord IncludedCFC / HCFC Free Refrigerants

DIMENSIONS:13.5″ W x 23.5″ D x 12.0″ H

WEIGHT:COLDWELL Stainless Trap 14 lbs

Thermo Mechanical Base 60 lbs

Shipping Weight 95 lbs

INCLUDED CONNECTIONS:1 each 4′ KF-25 flanged vacuum rated line1 each KF-25 Centering Ring1 each KF-25 Clamp
