Col-Met C1D2 Booth 8x12' with Exhaust Control Fan Package

Col-Met C1D2 Booth 8x12' - Manual available upon request

Includes the extraction fan control package (details below)

Overview:

The Col-Met C1D2 Booth 8x12' is a certified explosion-proof enclosure designed for safe and compliant extraction or post-processing operations. Built to meet Class 1, Division 2 standards, it provides a controlled environment ideal for handling flammable solvents while ensuring operator safety and regulatory compliance.

Key Features & Specifications:

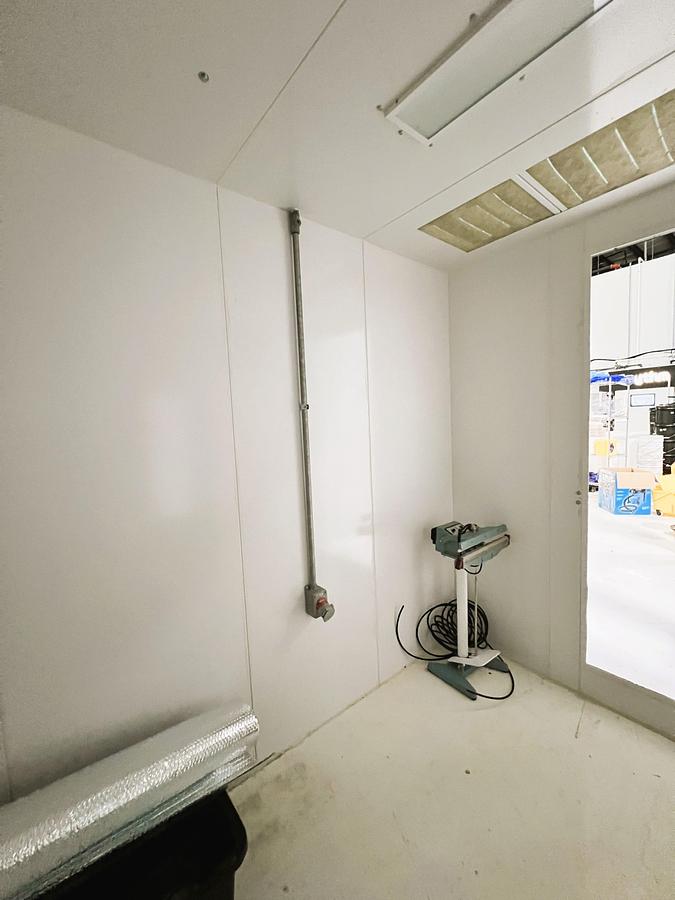

 Interior working dimensions of: 8’-0’’ wide X 8’-0’’ tall X 8’-0’’ long (to cavity plenum).

*All components of this booth are galvanized*

 (3) 48 Inch 4K LED ETL Listed Class I Division II Inside-access fluorescent fixtures (lamps included) will supply

illumination.

 (1) Personnel door 36” wide X 84” tall with observation window 14 ½” wide X 48” tall will allow egress.

 (2) Observation window 14 ½” wide X 48” tall

Extraction Fan Control Package - Originally Paid $5,838.00 for package

UL Listed 508A Control Panel w/ VFD for .75hp motor and 3 light fixtures

-panel includes VFD

-includes audible alarm

-includes visual alarm stack

-includes disconnect

-push button on for lights and fan

-NEMA enclosure

-LEL sensor and calibration kit (LEL sensor ships loose and needs to be field installed due to wiring

classification inside booth)
