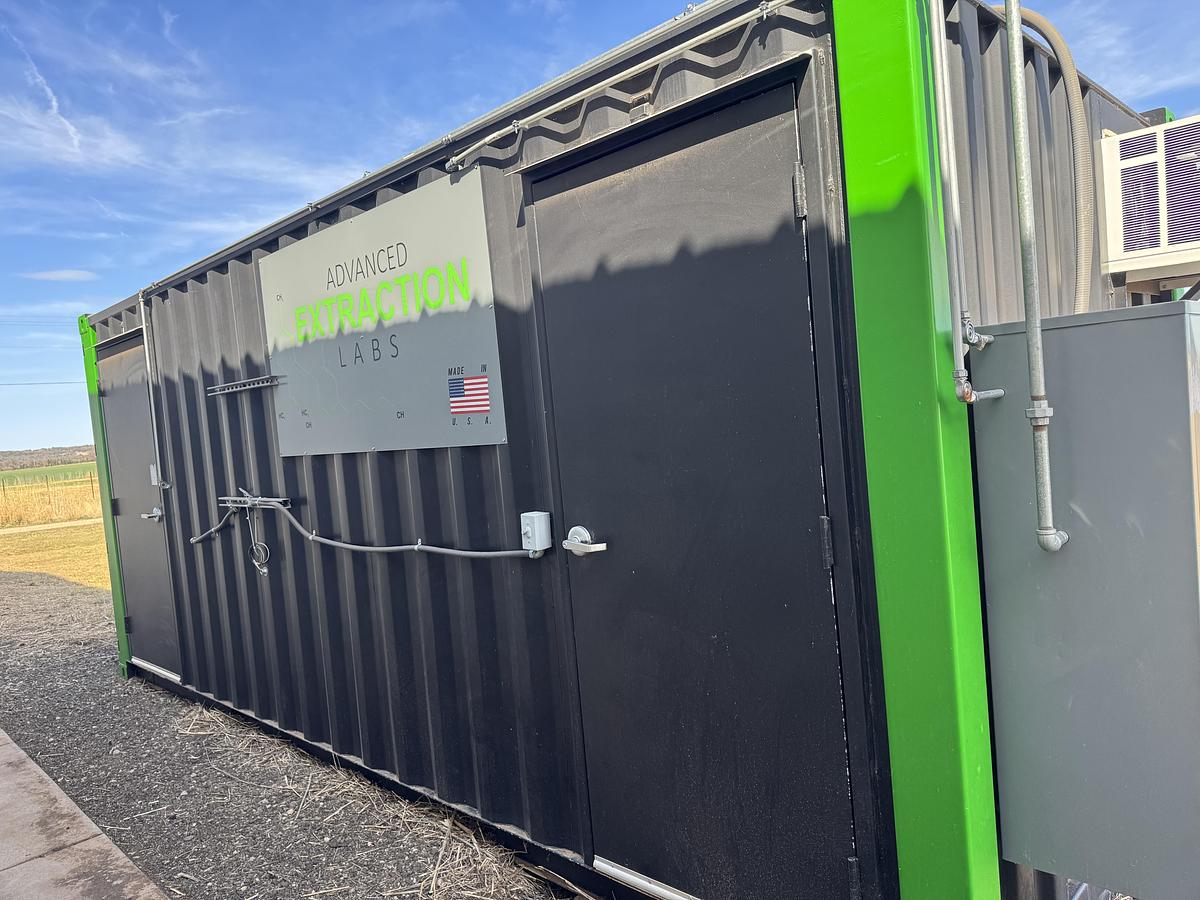

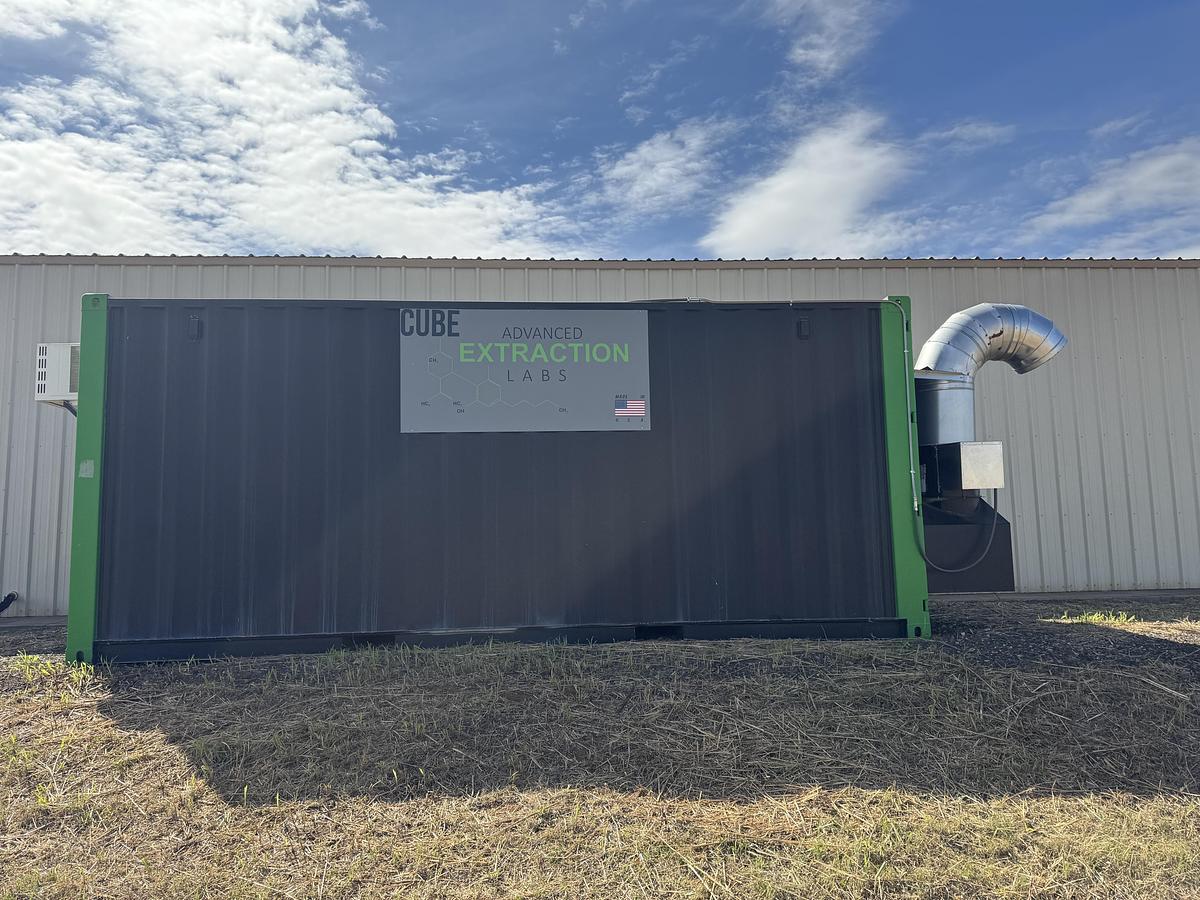

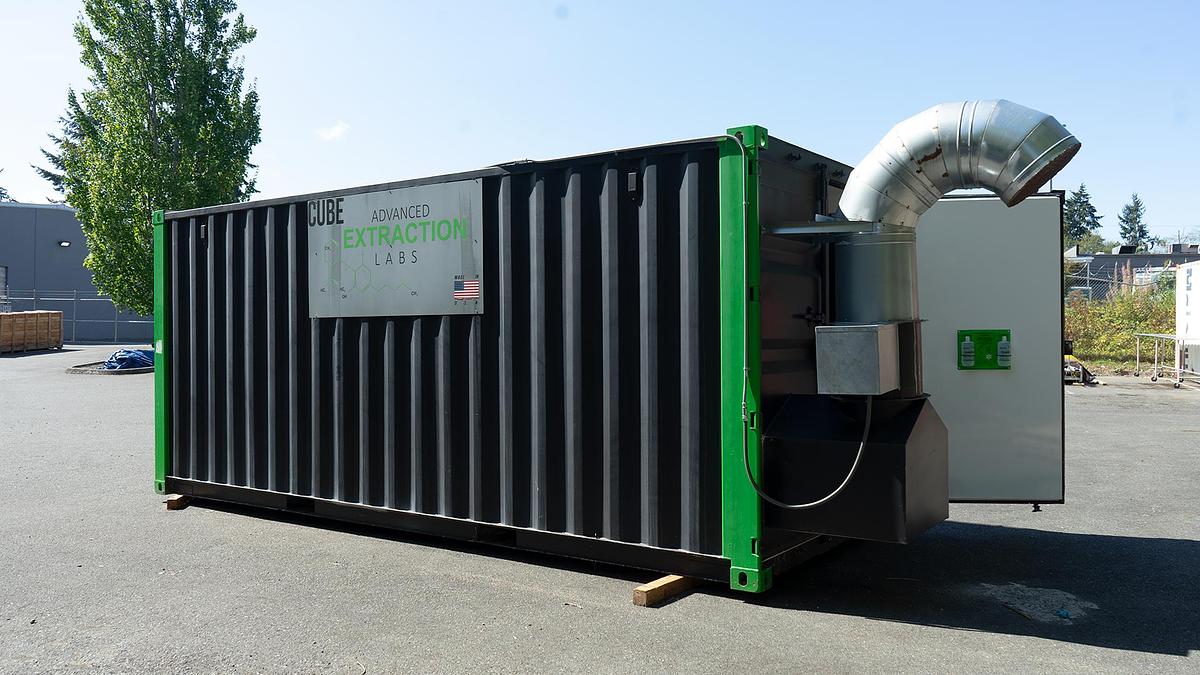

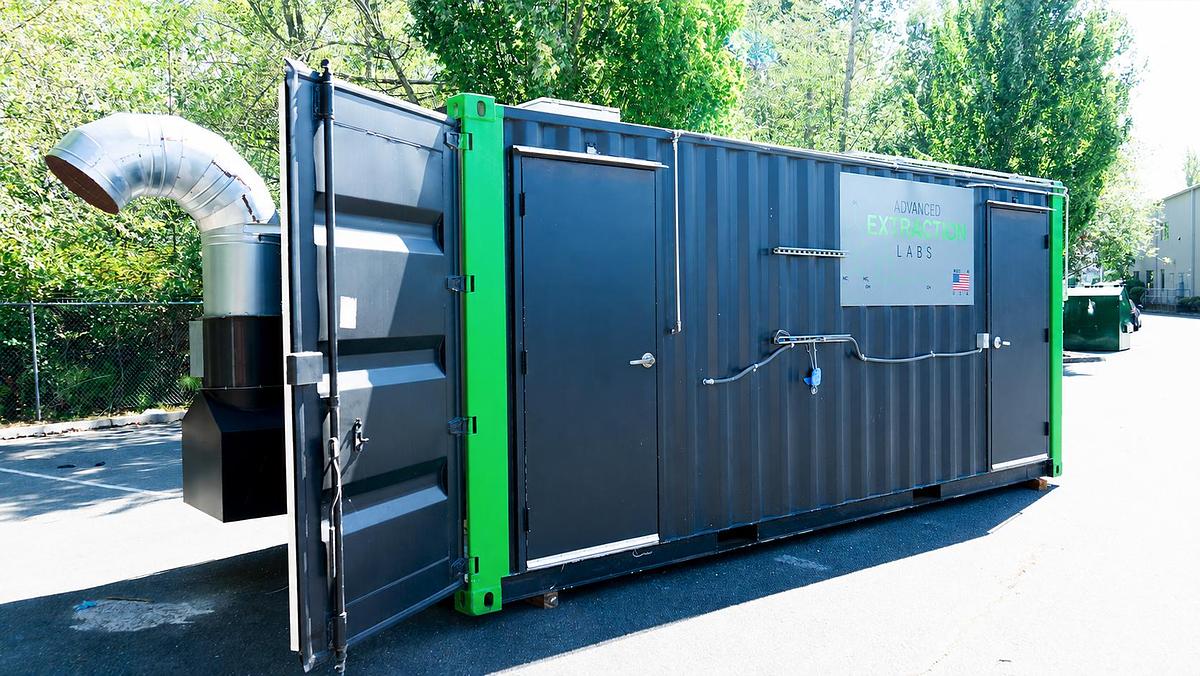

Advanced Extraction Labs C1D1 Extraction Booth Model CS820 | 8' x 8' x 20' |

Brand new, never used Advance Extraction Labs C1D1 8x20'

Seller installed and never hook it up to their facility.

Advanced Extraction Labs — C1D1 Extraction Booth Model CS820 | 8' x 8' x 20'

Included:

Structure

• 14-gauge steel construction (exceeds 1-hour fire wall rating)
• Fully insulated interior
• Marine grade epoxy primer + marine grade topcoat exterior paint
• Custom partition included

Doors & Egress

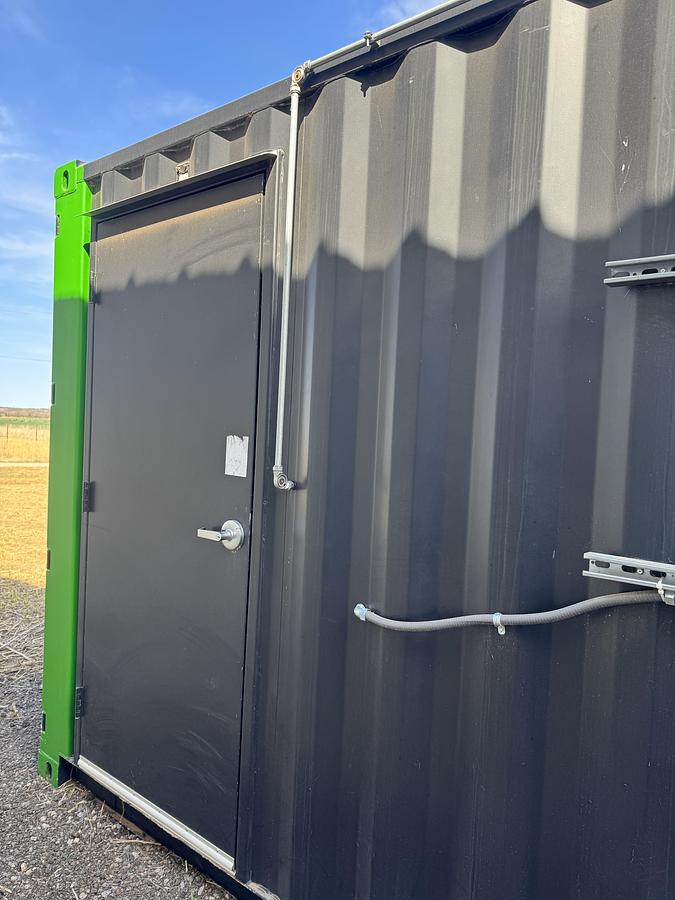

• Fire-rated gray right-hand flush steel prehung commercial door and frame with panic bar — UL and cUL listed
• BradyGlo glow-in-the-dark exit signs (no power required, NFPA 101 compliant, UL 924 listed)

Lighting

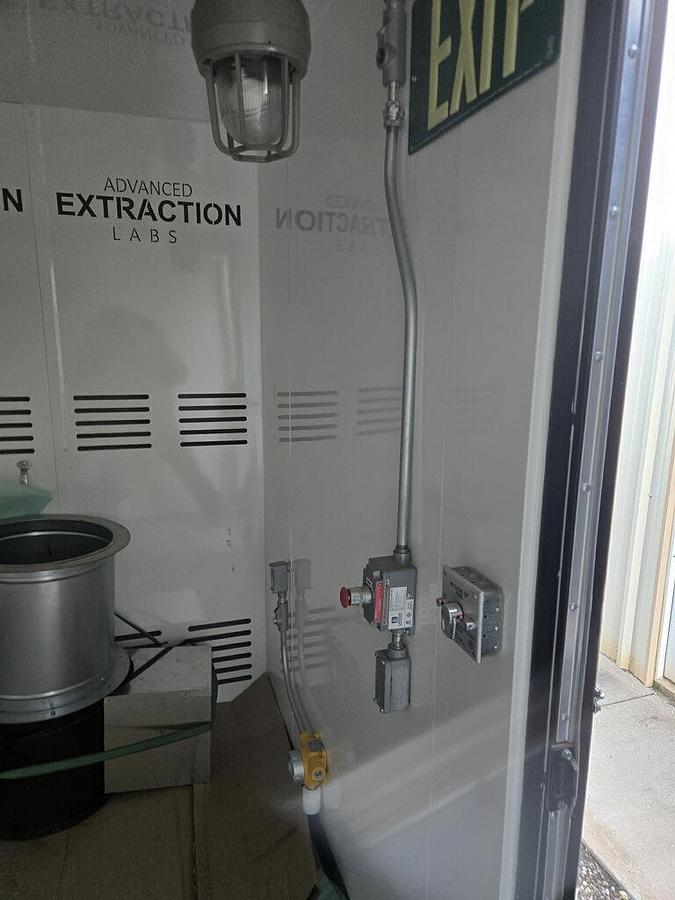

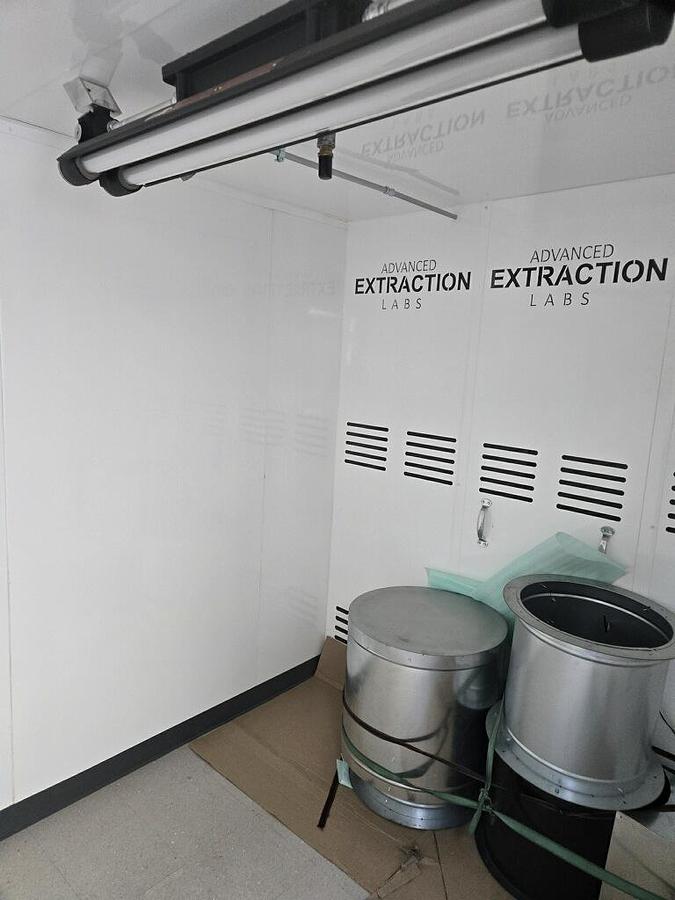

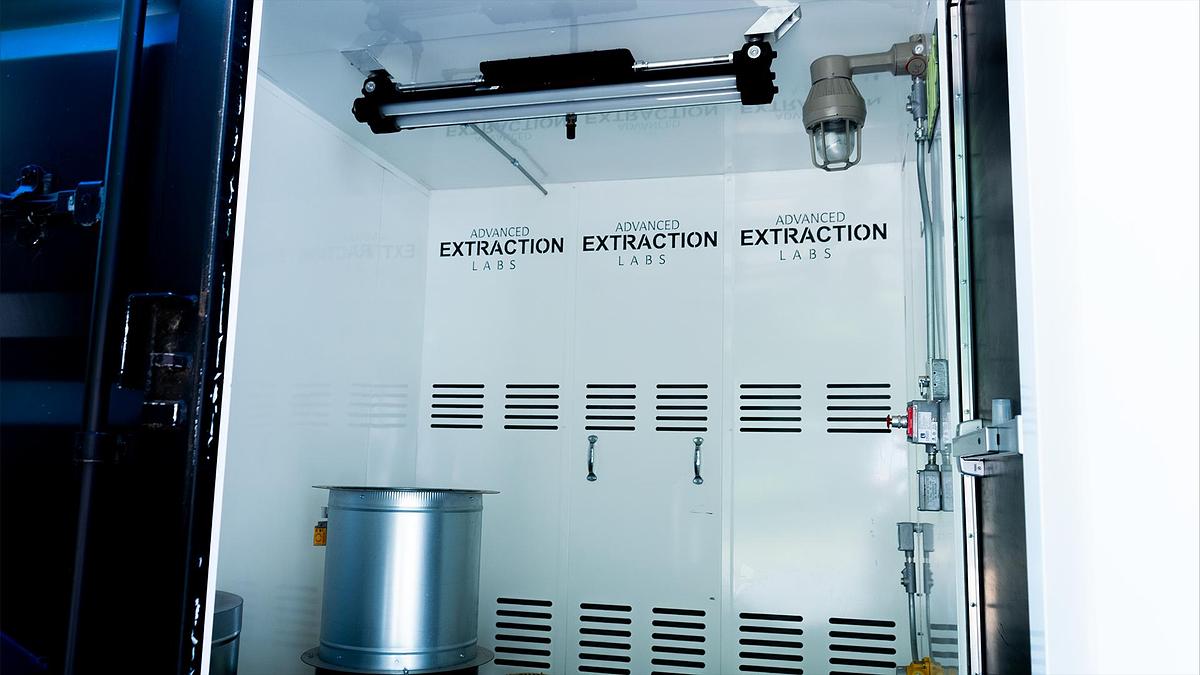

• LE551 Series explosion-proof LED fixtures (UL844 / CSA-C22.2 No.137 certified, C1D1 & C2D rated)
• Emergency explosion-proof LED light — Larson EPL-EMG-CM-LED10W, 1050 lumens, battery backup, Class I Div 1 & 2 rated

Ventilation

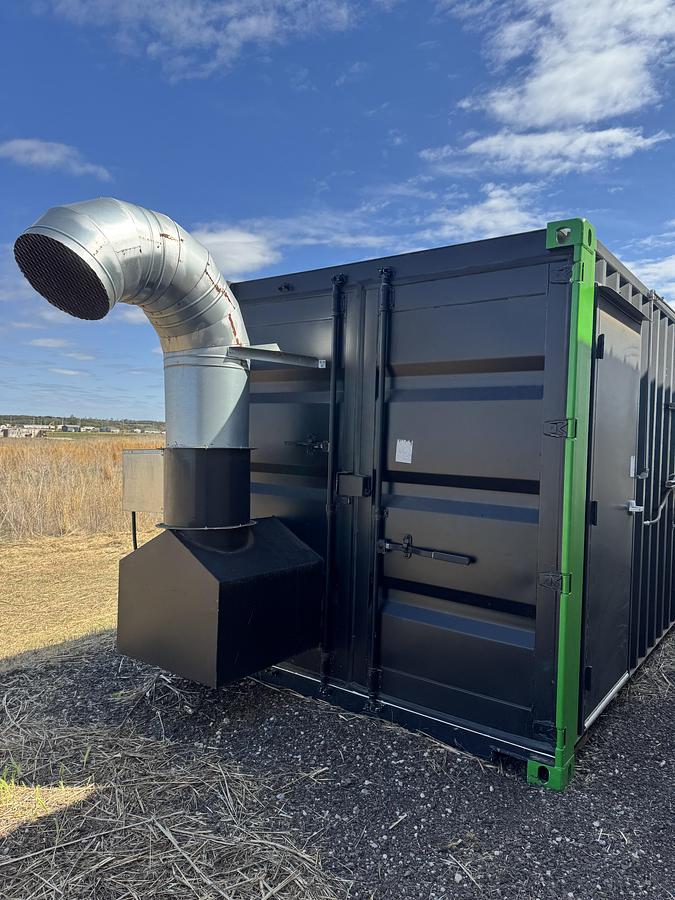

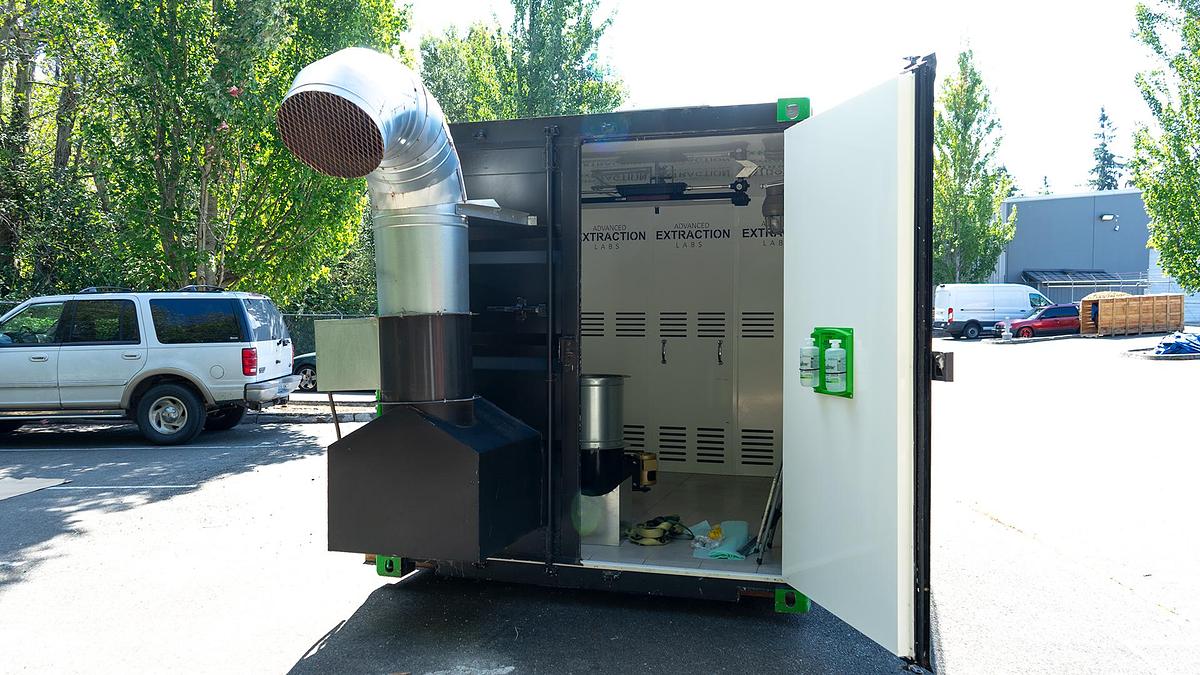

• 18" 6-blade Acme exhaust fan, 3,000–4,000 CFM, non-sparking polypropylene blades, 1 HP 230VAC 3-phase motor with VFD
• Motorized extruded aluminum damper, spring return, up to 3,500 FPM / 4" WG max pressure

Safety & Detection

• LEL gas detector — standalone explosion-proof C1D1 transmitter with OLED display; detects LEL, O2, H2S, CO, CO2, CH4, and more; 2 programmable alarm relays; magnetic wand calibration
• Signal light stack with audible alarm (24V or 120V AC/DC, modular)

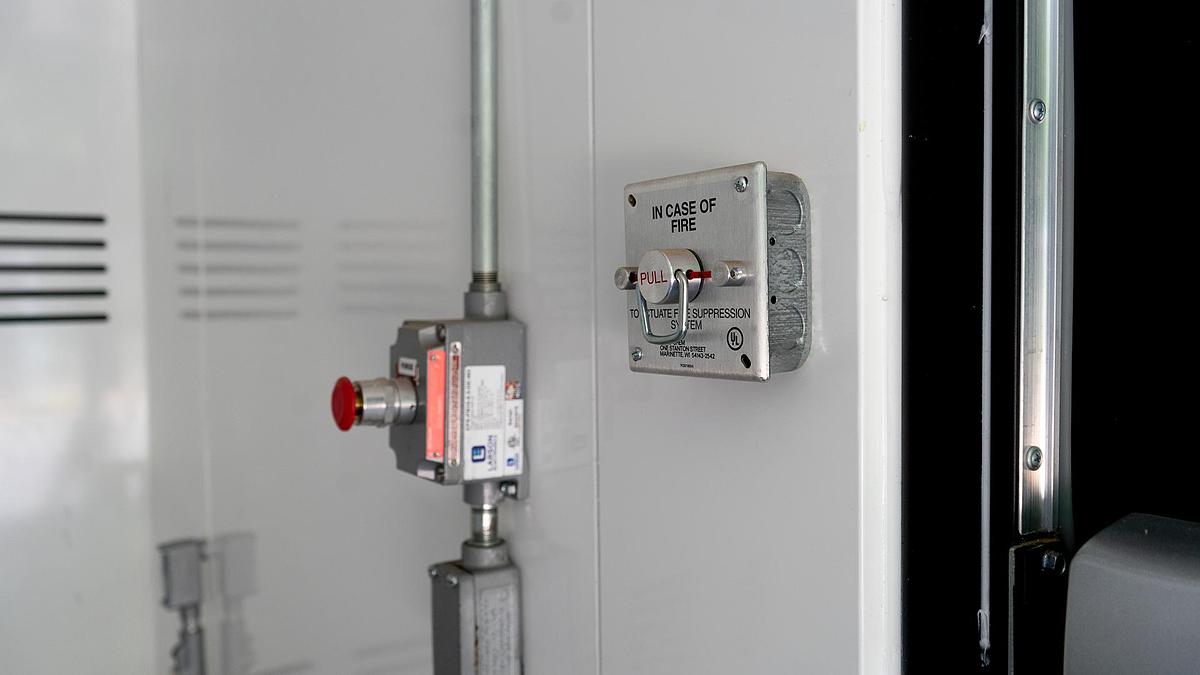

• Dry chemical fire suppression system (local permit and fire contractor activation required)

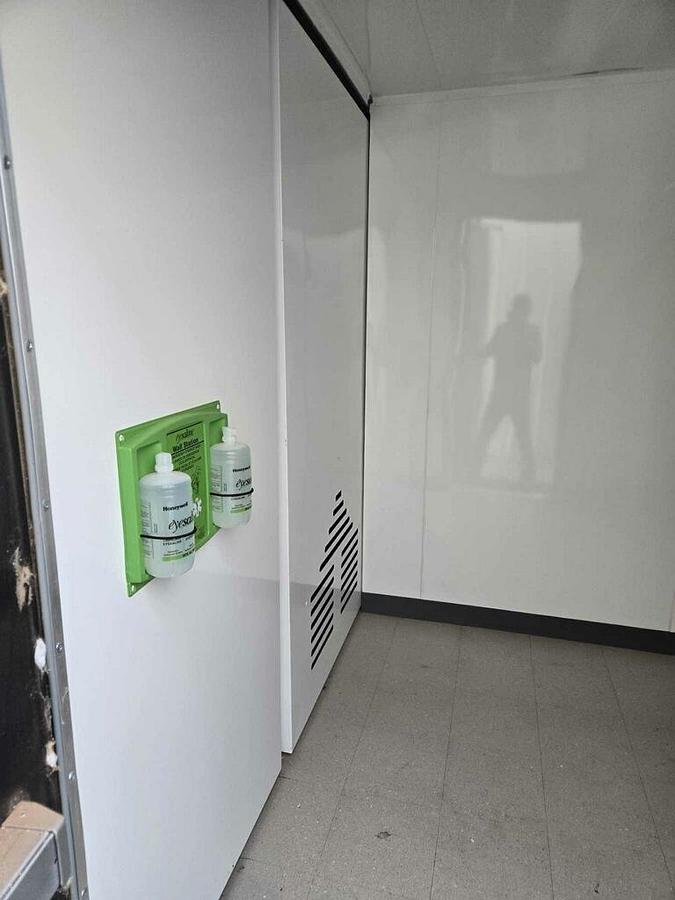

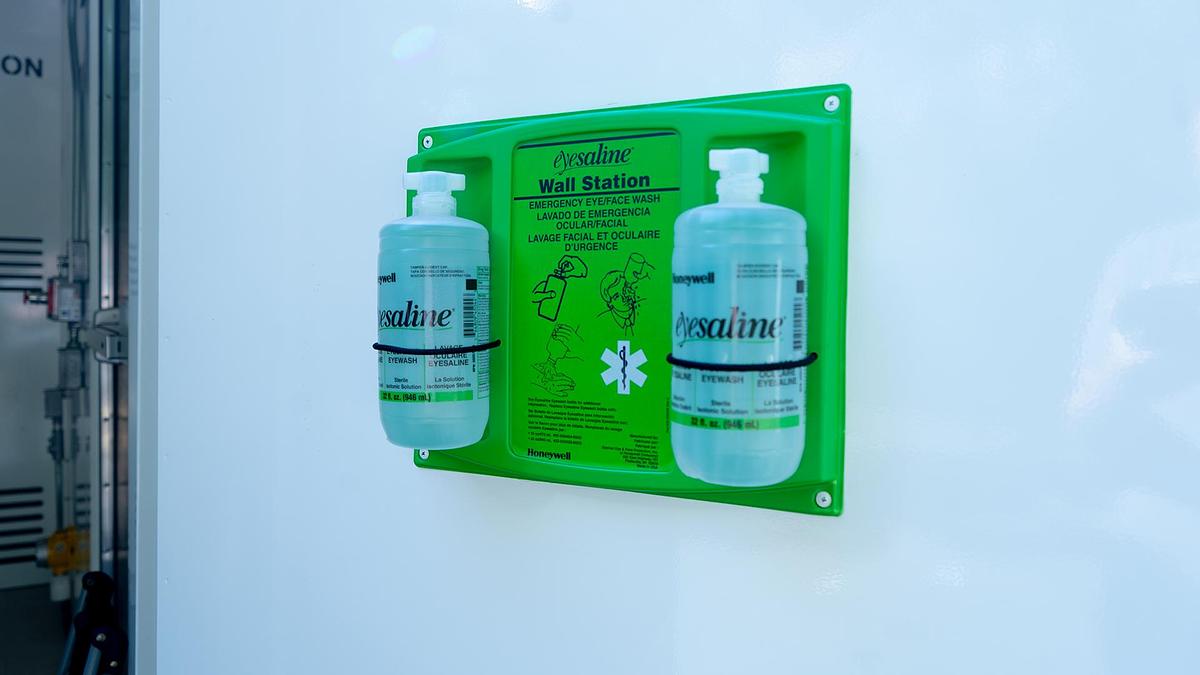

• Eye wash station — 1-gallon gravity-feed, wall-mounted, saline included

Electrical & Controls

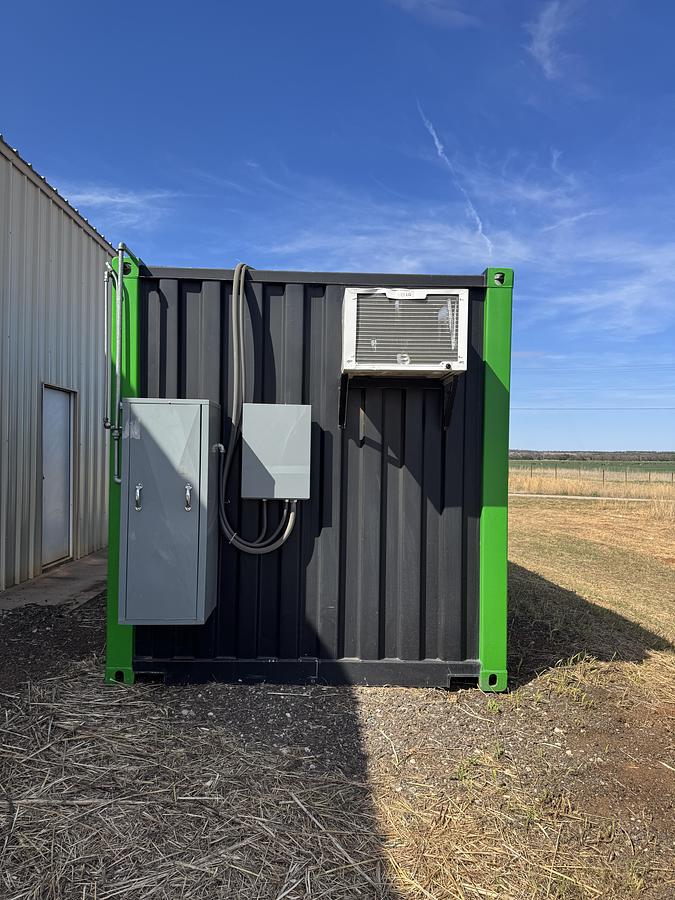

• CP300 Control Panel — 20x20x8 NEMA 4 enclosure, 60A main disconnect with lockout/tagout, VFD for booth motors, E-stop, run/fault/warning indicators, warning beacon
• 100A electrical panel — 120/240VAC, 2-pole QB Series molded case circuit breaker, free-standing

Flooring

• High-traffic grade linoleum/vinyl tile

HVAC

• 2-ton Bard HVAC system included

Certifications: UL, OSHA compliant, NFPA member, PSI certified
