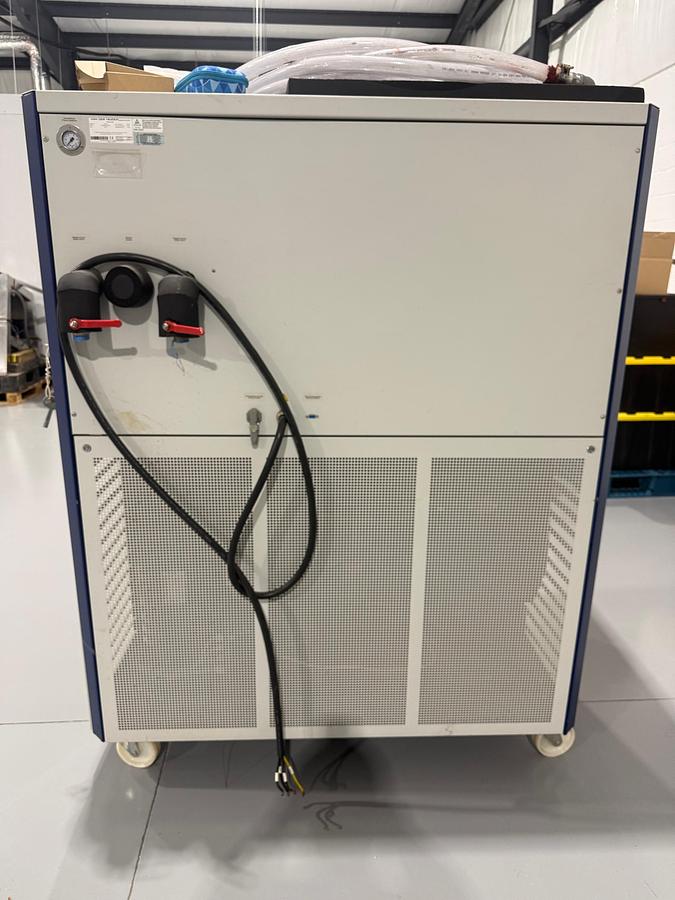

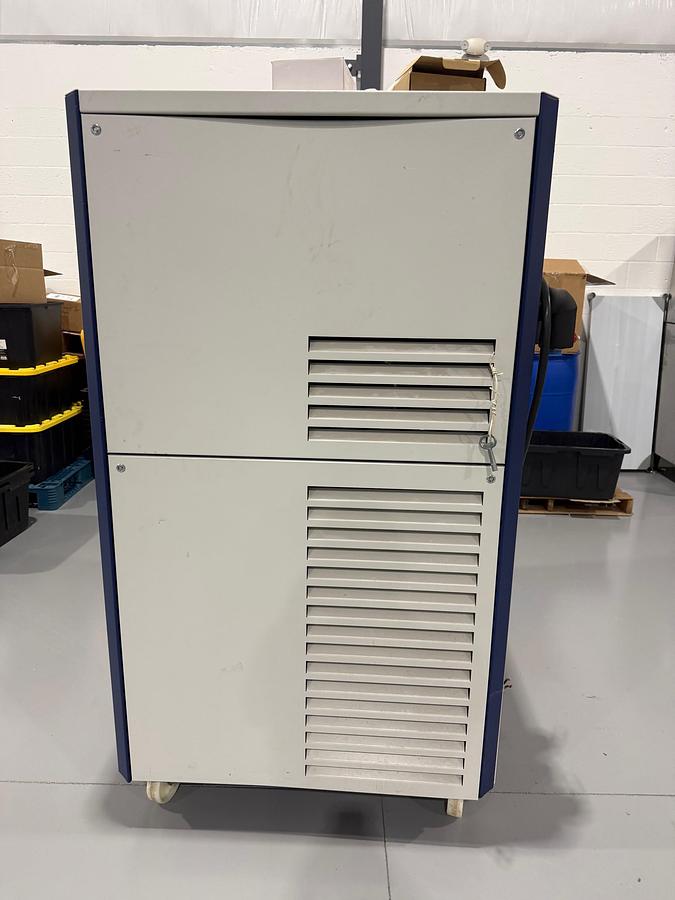

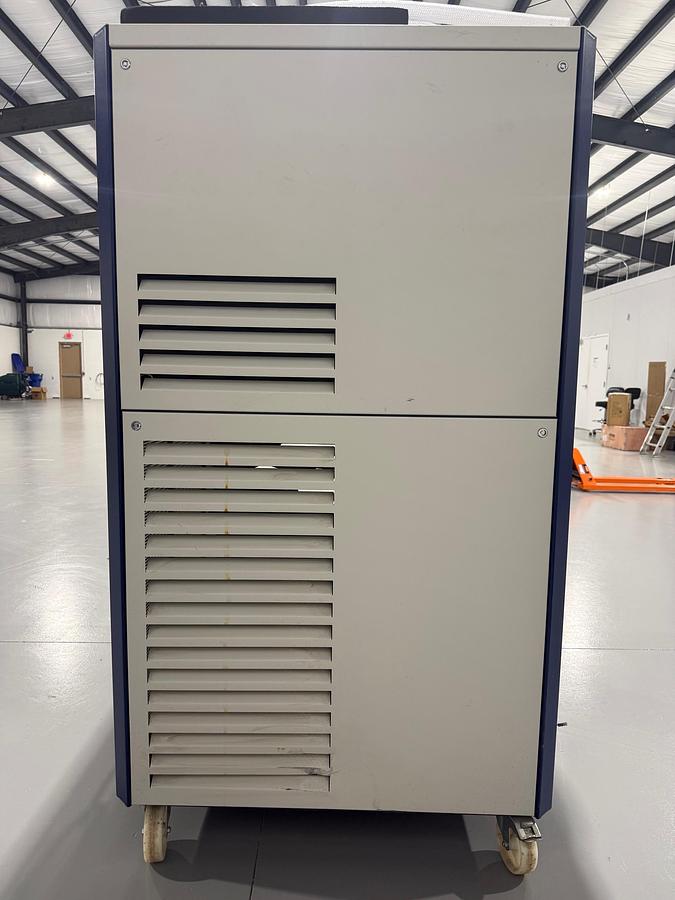

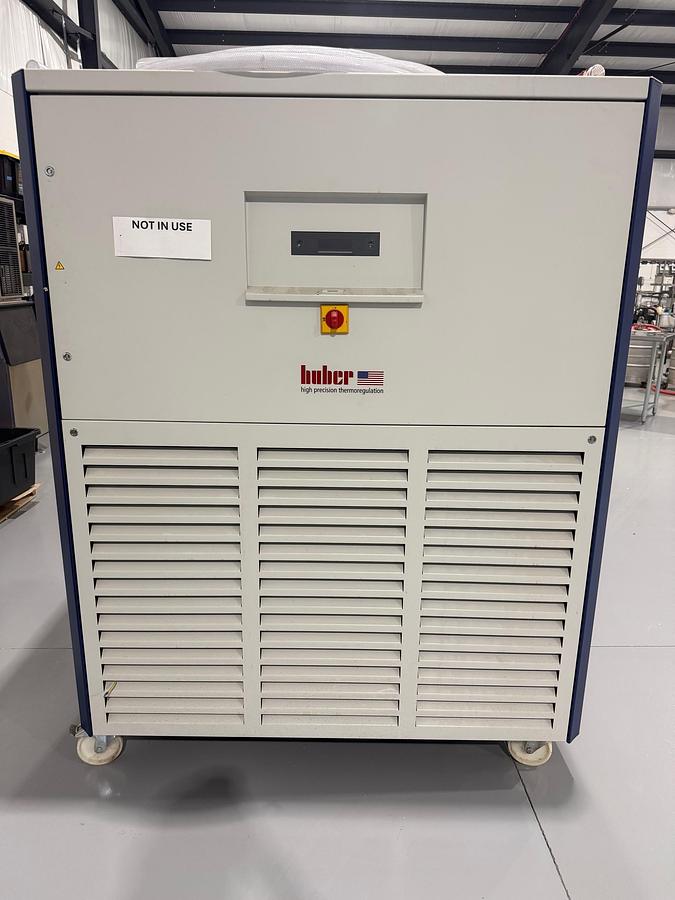

Huber CS 200 Recirculating Chiller

Huber CS 200 Recirculating Chiller

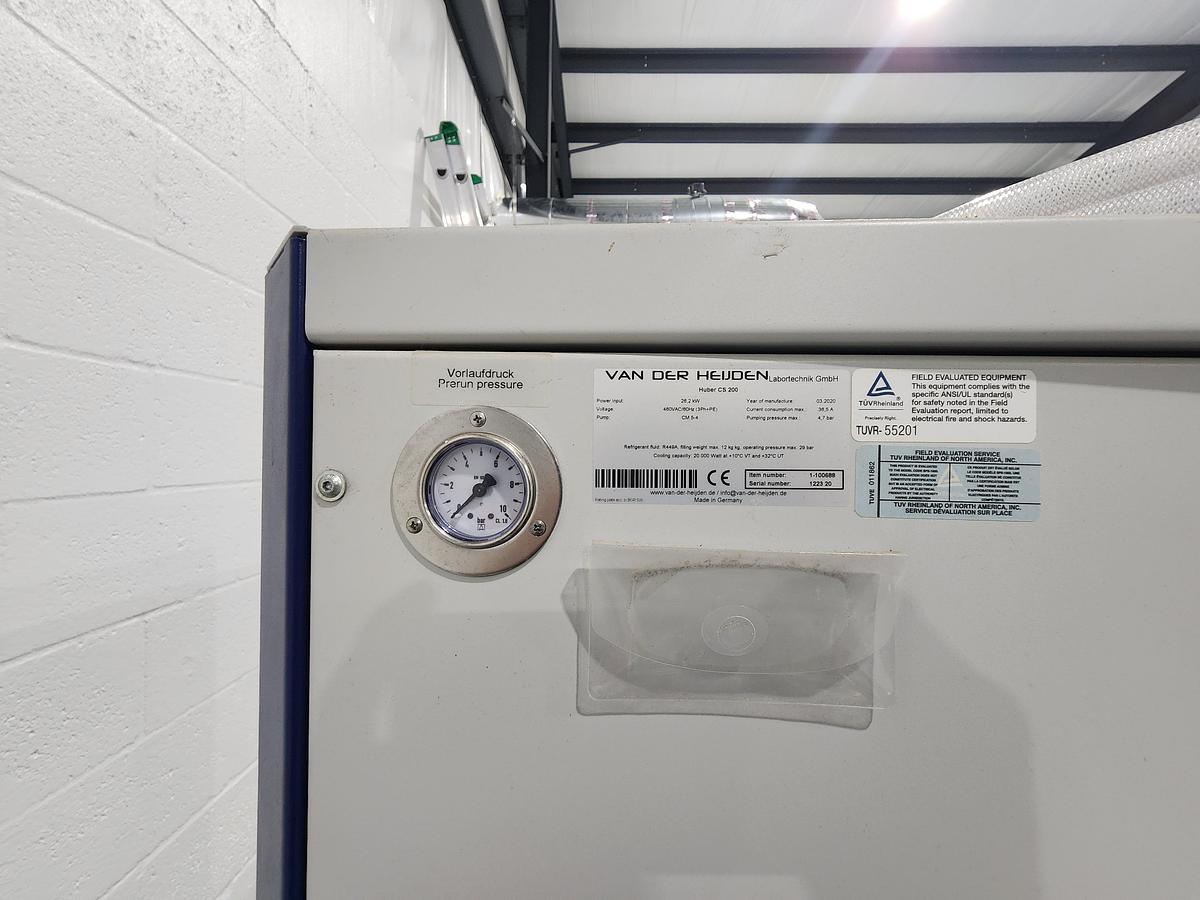

• Manufacturer: Van der Heijden Labortechnik GmbH (Huber-based unit), Made in Germany
• Model: Huber CS 200
• Item Number: 1-100688
• Serial No.: 1223 20
• Year of Manufacture: March 2020
• Power Input: 26.2 kW
• Voltage: 480 VAC / 60 Hz, 3-phase + PE
• Max Current Consumption: 36.5 A
• Pump: CM 5-4
• Max Pumping Pressure: 4.7 bar
• Refrigerant: R449A, max filling weight 12 kg, max operating pressure 29 bar
• Cooling Capacity: 20,000 Watts at +10°C VT and +32°C UT

This is an industrial-grade recirculating chiller, well suited for process cooling on extraction, distillation, or reactor systems requiring high, stable cooling capacity; a good fit alongside short path distillation units or ethanol extraction systems.
