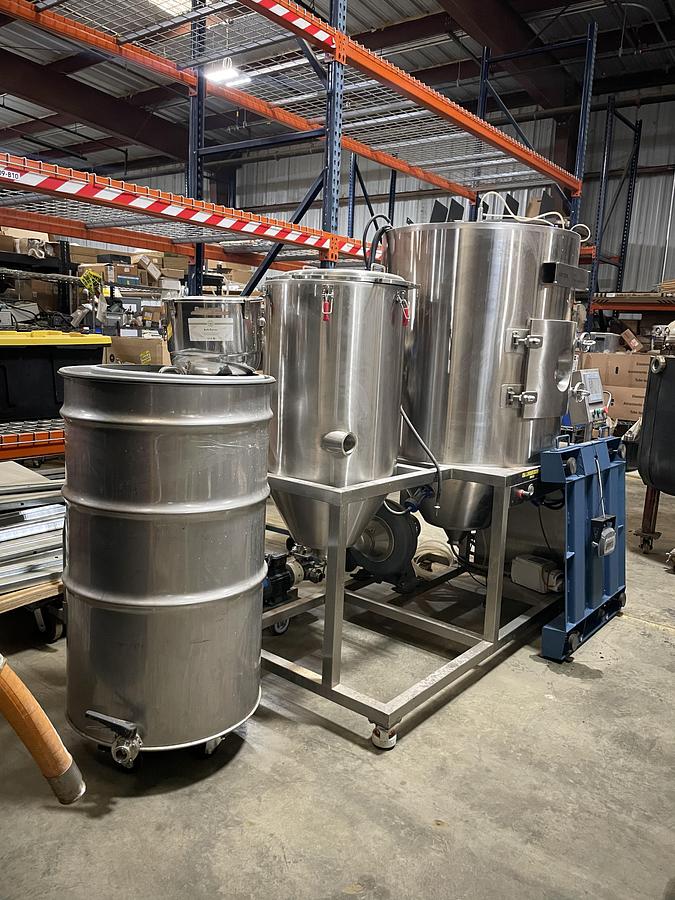

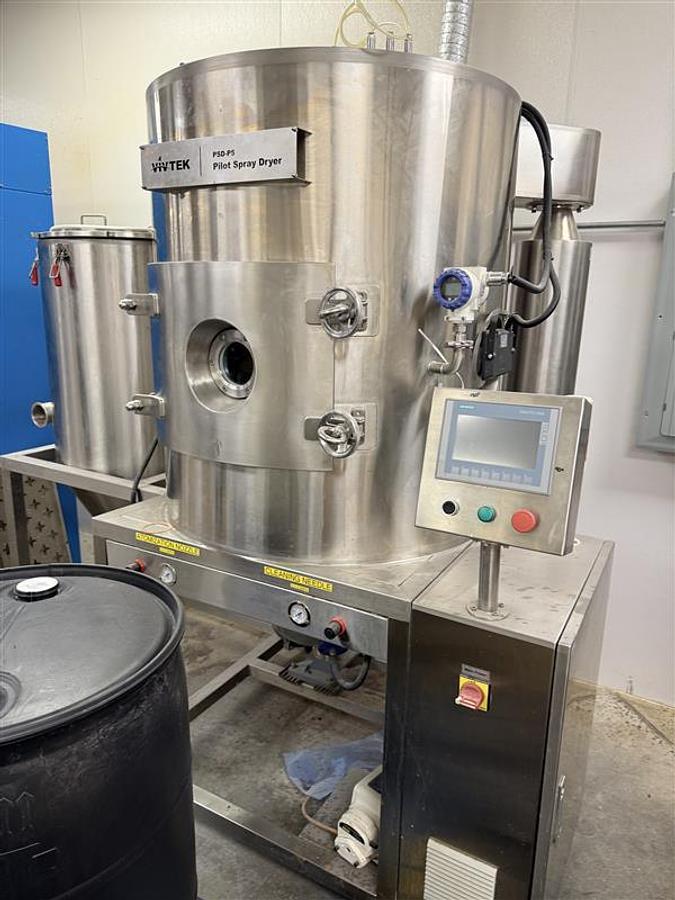

Vivtek PSD-P5 Pilot Spray Dryer (Food Grade Powder Processing Machine)
Vivtek PSD-P5 Pilot Spray Dryer (Food Grade Powder Processing Machine)
$27,000 (USD)
Location:North Carolina
or
Call +1 425-358-0425
Description
The Vivtek PSD-P5 Pilot Spray Dryer manuf 2023 is lightly used and operational.

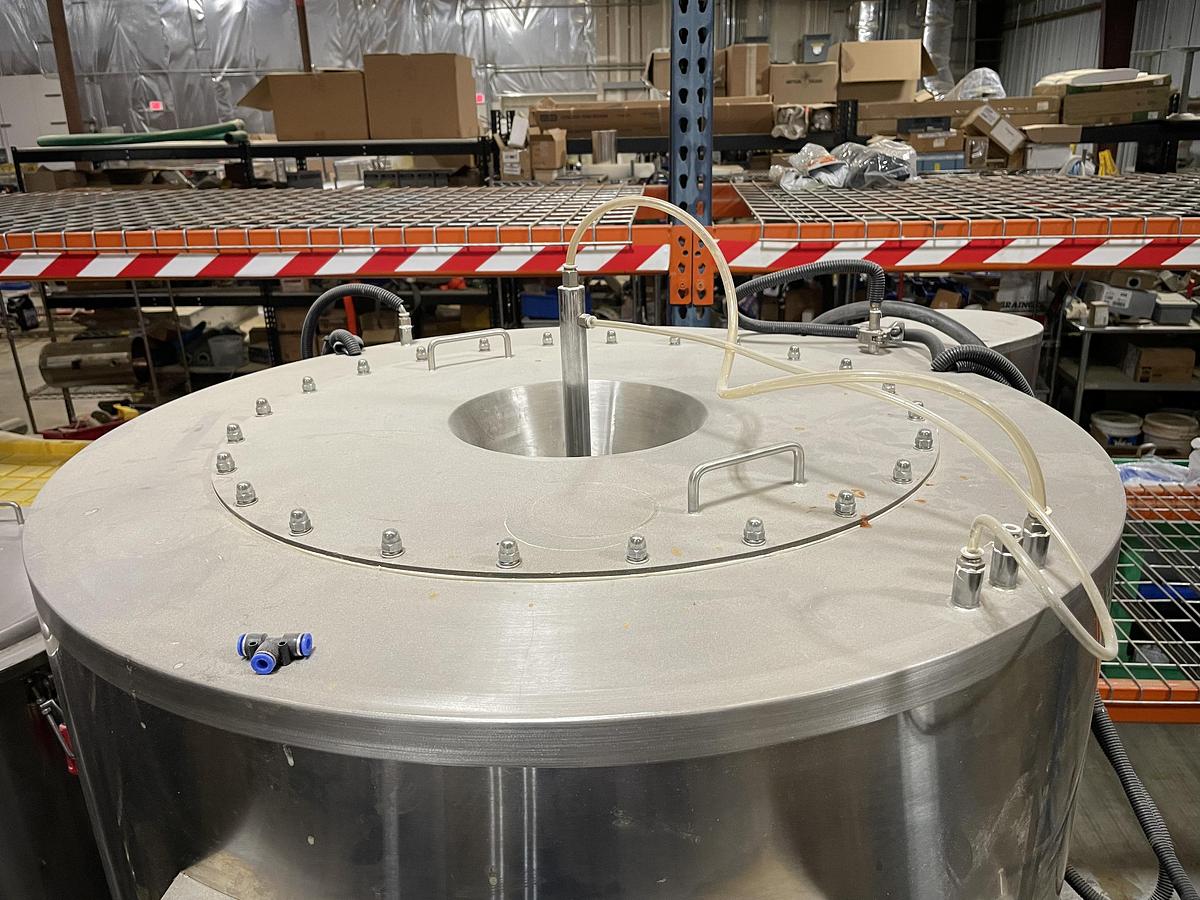

This system is designed with an evaporation capacity of 5–8 kg/hour (11–17.5 lbs/hour), the PSD-P5 delivers efficient and consistent drying performance. The system features a 32" diameter x 60" long drying chamber and a 6" x 16" cyclone separator for effective powder recovery.
Equipped with a versatile two-fluid atomizer (1 mm, 1.5 mm, and 2 mm nozzles), this spray dryer allows for precise particle size control across a range of formulations. A 12 kW heater supports drying temperatures up to 280°C (538°F), while a 750W air blower ensures stable airflow and drying conditions.
The system needs an exhaust tube and outlet filter replacement, as stated by the seller.
Specifications
- Manufacturer: Vivtek Instruments
- Model: PSD-P5
- Condition: Used
- Year: 2023
- Evaporation Capacity: 5–8 kg/hr (11–17.5 lbs/hr)
- Drying Chamber: 32" diameter x 60" length
- Cyclone Separator: 6" diameter x 16" length
- Atomizer Type: Two-fluid atomizer
- Nozzle Sizes: 1 mm, 1.5 mm, 2 mm
- Maximum Temperature: 280°C (538°F)
- Heating Capacity: 12 kW
- Air Blower: 750W
- Dust Collection: Included
- Electrical Requirements: 3 Phase / 230V
Specifications
| Manufacturer | Vivtek |
| Model | PSD-P5 |
| Condition | Used |
| Stock Number | 00310 |
| * Manufacturer | Vivtek Instruments |
| * Condition | Used |
| * Year | 2023 |
| * Evaporation Capacity | 5–8 kg/hr (11–17.5 lbs/hr) |
| * Model | PSD-P5 |
| * Atomizer Type | Two-fluid atomizer |
| * Maximum Temperature | 280°C (538°F) |
| * Heating Capacity | 12 kW |
| * Air Blower | 750W |
| * Dust Collection | Included |
| * Electrical Requirements | 3 Phase / 230V |
