Delta Separations CUP 30 Ethanol Extraction Centrifuge - Low Hours

Delta Separations CUP-30 Ethanol Extraction Centrifuge — Complete System

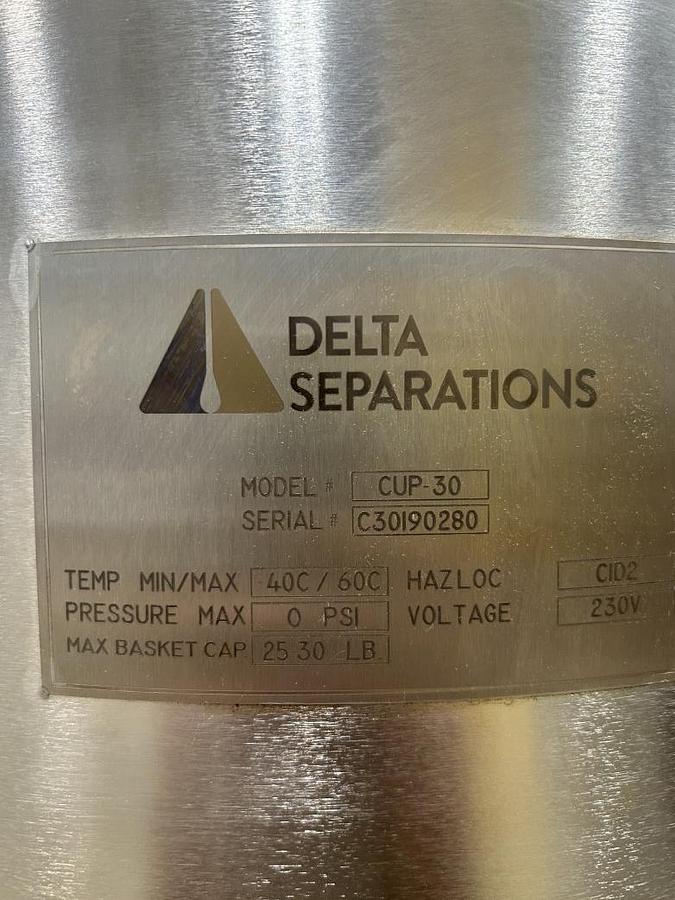

Model: CUP-30, Version 2.0 | Serial: C30190280

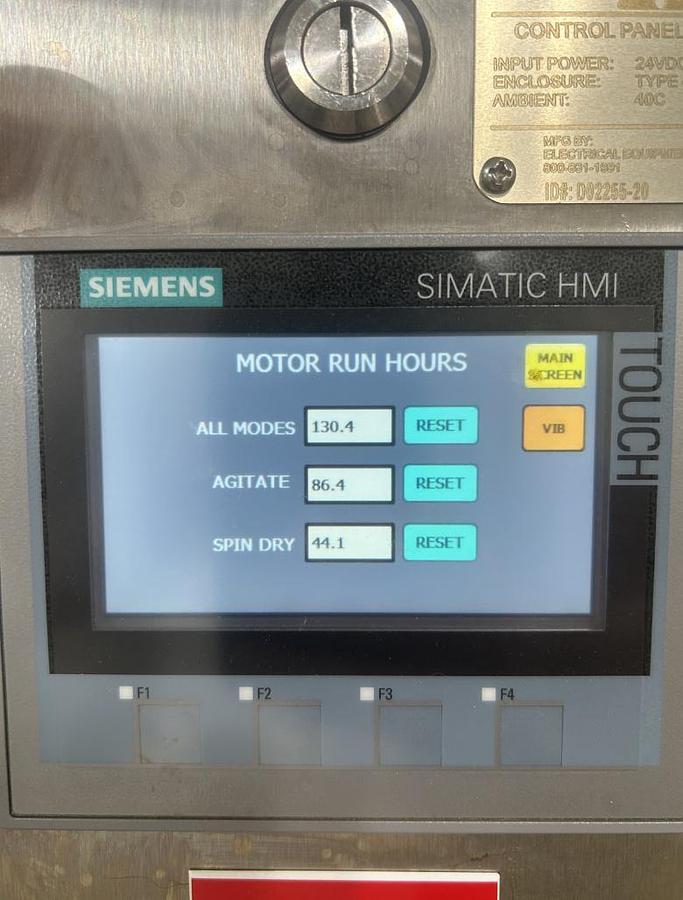

Low-hour Delta Separations CUP-30 centrifugal ethanol extraction system, purchased new and run by a single operator at a Kansas processing facility. HMI meter shows just 130.4 total motor hours (86.4 agitate / 44.1 spin dry) — light usage, fully operational at decommissioning, and verified live off the touchscreen.

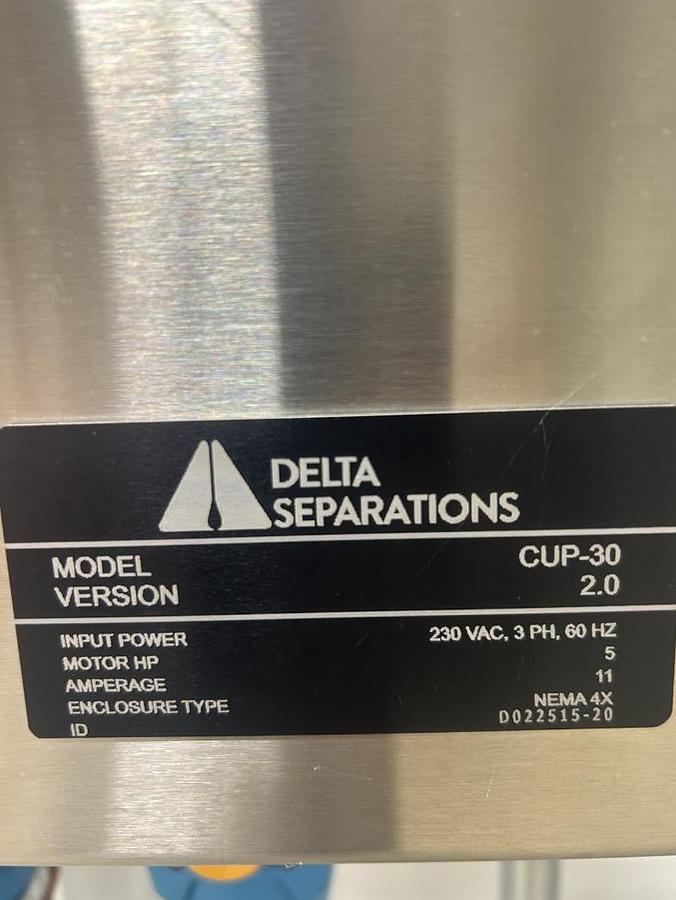

Class I Div 2 rated, 25–30 lb basket capacity, rated -40°C to +60°C at 0 PSI (non-pressurized). Runs on 230V 3-phase, 5 HP, 11A through a NEMA 4X main panel with fused disconnect.

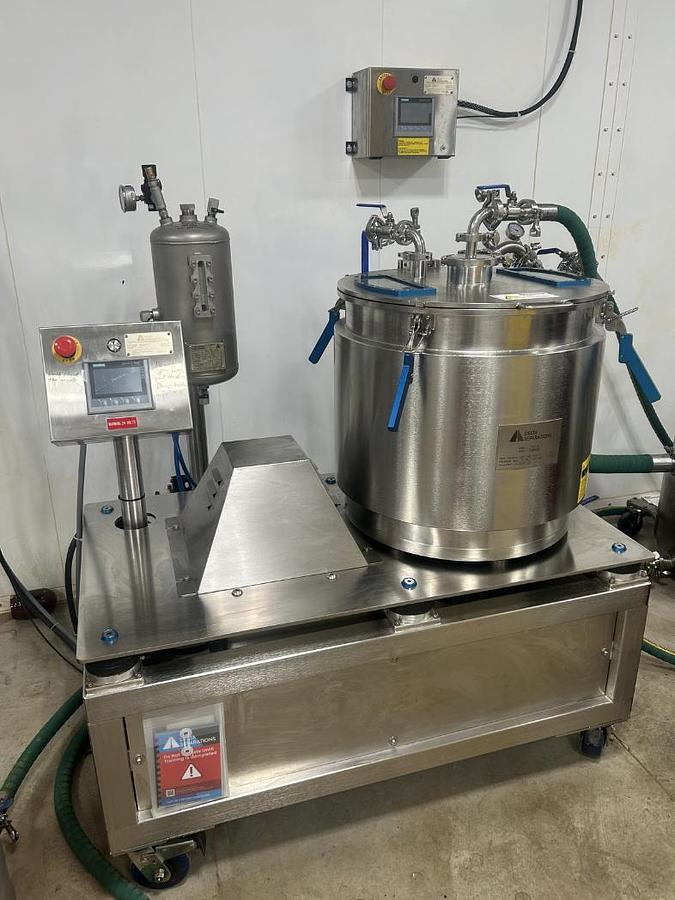

System includes:

• Stainless mobile cart with drip deck
• Pedestal Siemens SIMATIC HMI + E-stop, plus separate wall-mount remote HMI station

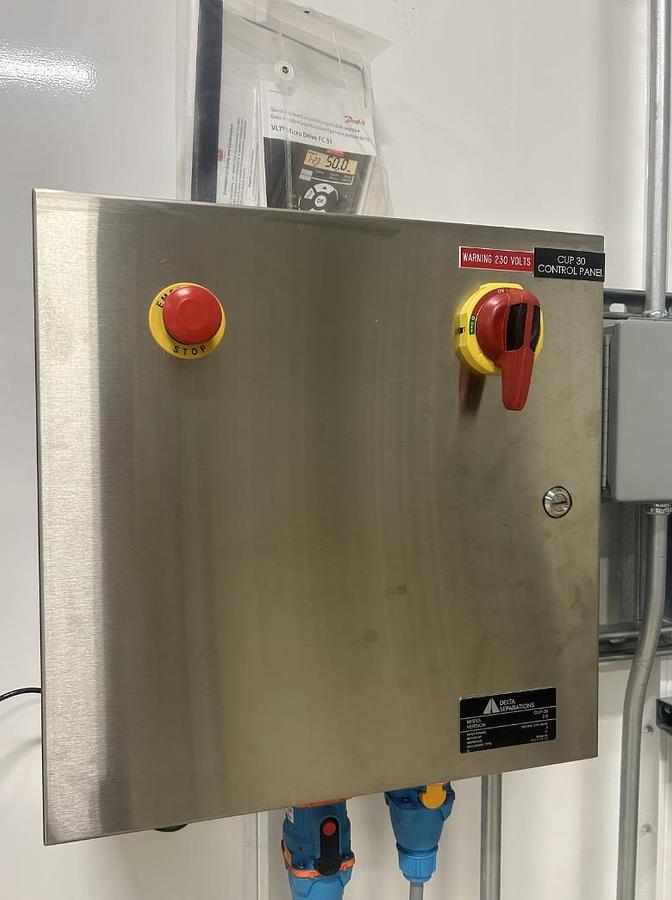

• NEMA 4X main control panel with fused disconnect
• Danfoss VLT Micro Drive FC 51 VFD

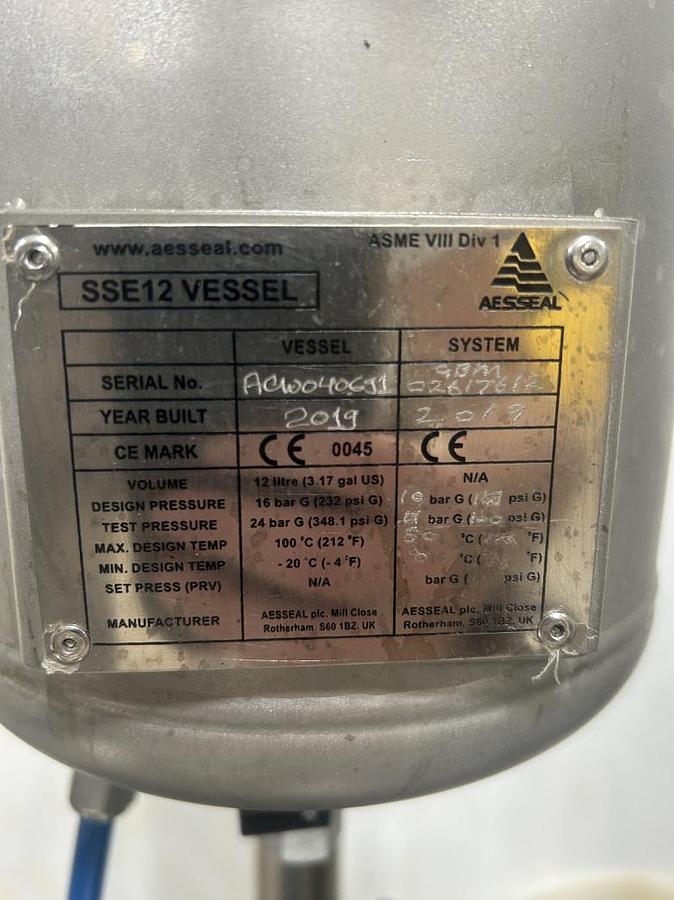

• AESSEAL SSE12 seal support vessel (ASME VIII Div 1, built 2019)
• Tri-clamp valve tree, IEC 60309 connectors

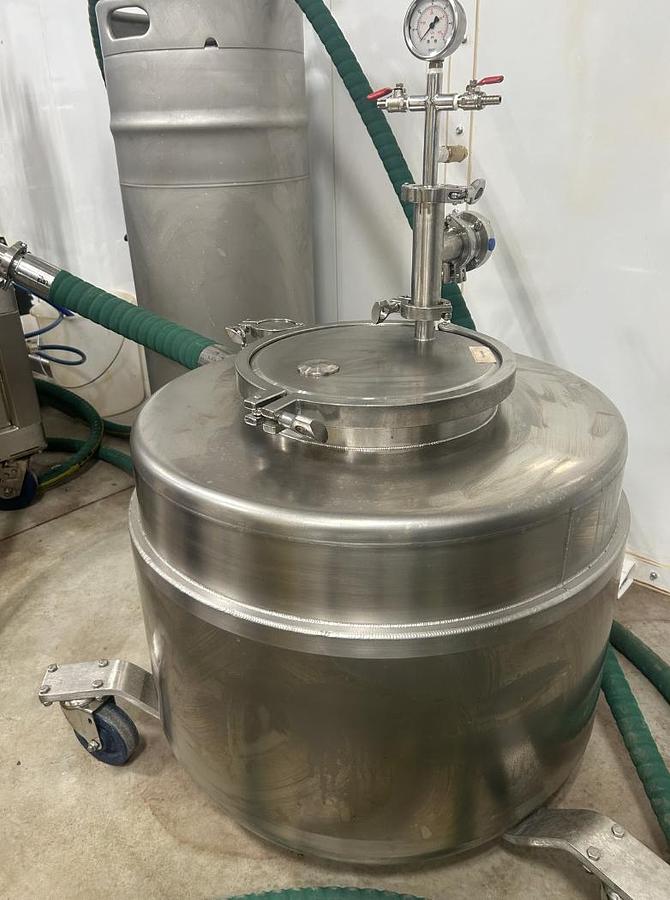

• Stainless collection/receiving tank on caster dolly with valve tree and gauge

Nothing missing, no modifications from factory configuration; this is a complete, ready-to-run centrifuge package straight out of a decommissioned facility. Full-resolution photos and serial documentation available on request.
