Delta Separations DC-40 Ethanol Chilling System w/ G&D Chiller

Delta Separations DC-40 Ethanol Chilling System

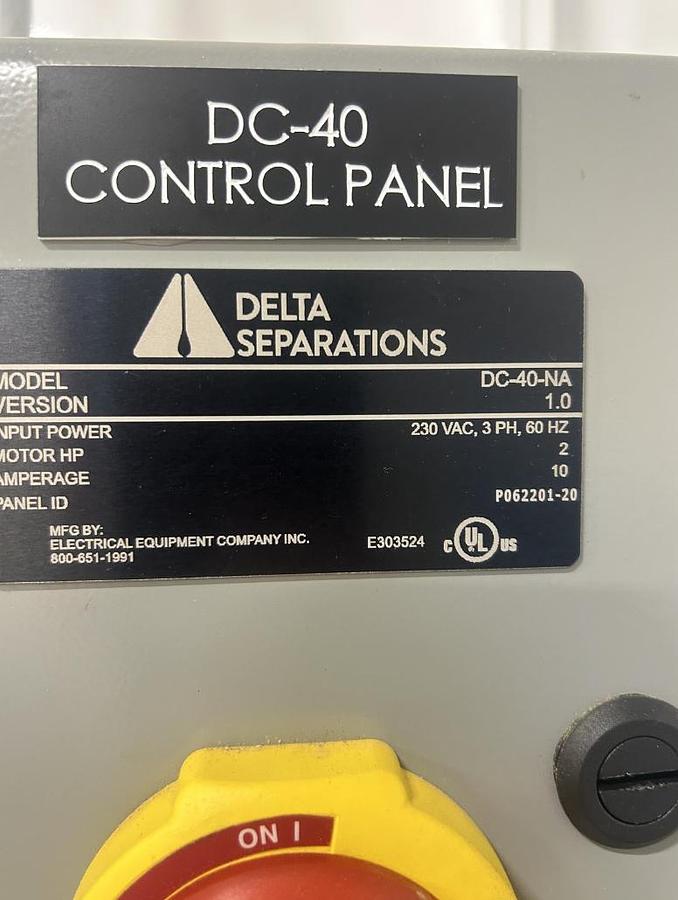

Model: DC-40 (control panel DC-40-NA v1.0) | Serial: D40200101

Complete Delta Separations DC-40 ethanol chilling skid, pulled from the same limited production campaign as the CUP-30 it supported. Fully operational at decommissioning.

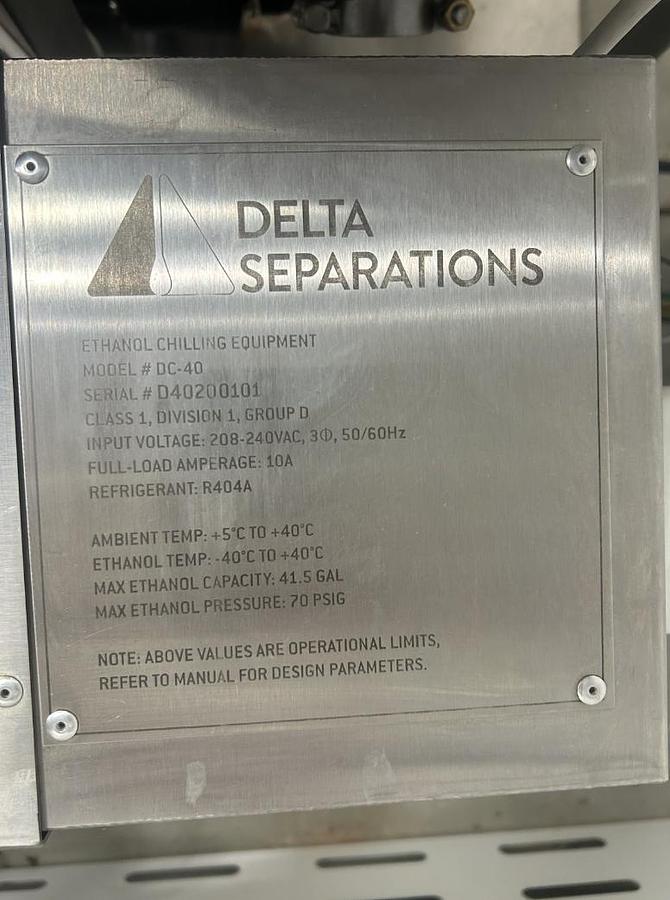

Class 1, Division 1, Group D rated. Handles ethanol from -40°C to +40°C, up to 41.5 gal capacity and 70 PSIG. Runs on 208–240V 3-phase, 10A FLA, 2 motor HP, UL listed (cULus, file E303524).

System includes:

• Insulated jacketed stainless reservoir on drip-pan skid
• Centrifugal pump with TEFC motor
• Fully insulated sanitary manifold with numbered butterfly valves, inline sight glass, process transmitter
• Wall-mount Siemens SIMATIC HMI station with E-stop

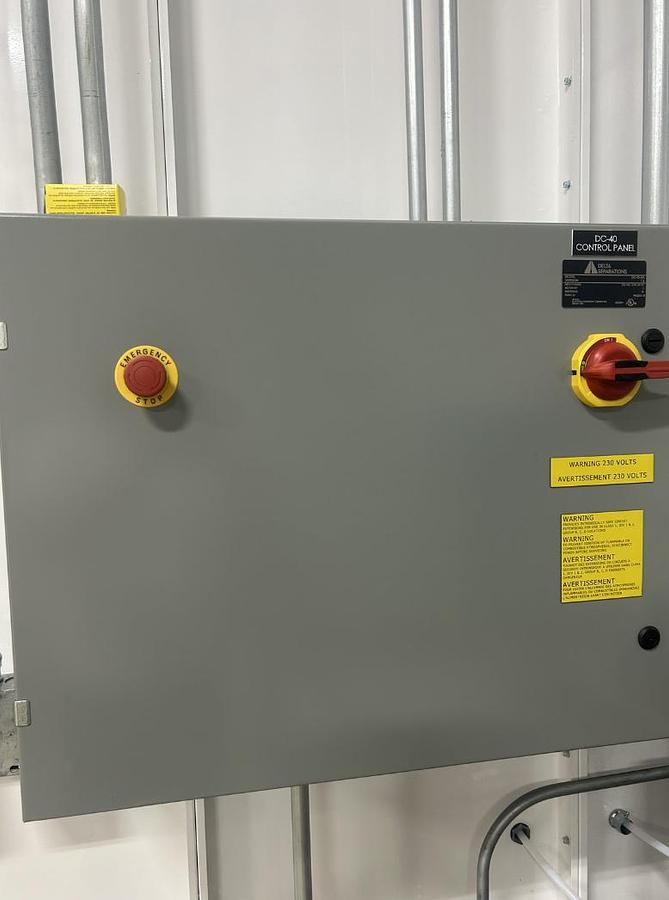

• DC-40 control panel with lockable disconnect
• Two chemical suction hoses with stainless fittings

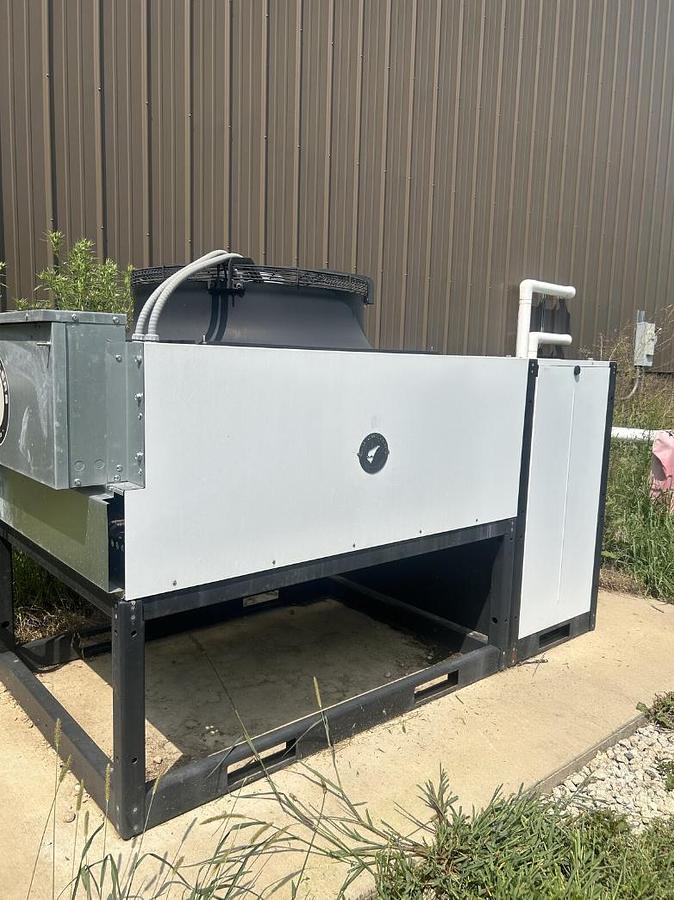

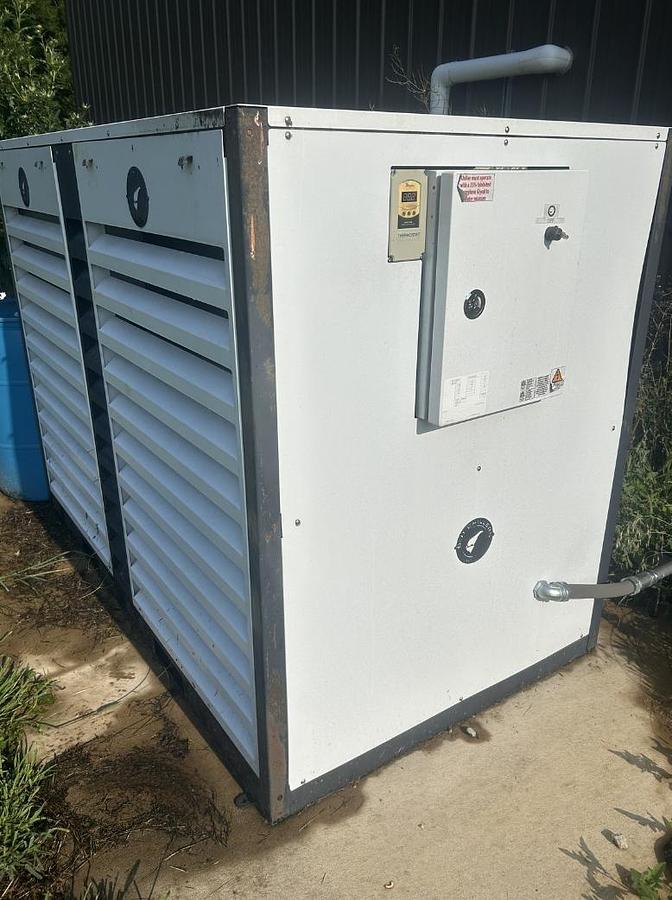

• Paired outdoor G&D condensing unit (factory-matched, ratings covered by the DC-40 data plate)

Factory configuration throughout, nothing missing. Pairs directly with the CUP-30 above or drops into any ethanol extraction line needing dedicated chilling capacity.
