Stick Pouch Filling Machine by Viking Masek Model ST400

Viking Masek ST400 Stick Pouch Filling Machine — 10-Lane Configuration

Two Available for sale!

Key Specifications

• Configuration: 10-lane (expandable range on the ST400 platform is 1–10 lanes)
• Max speed: up to 65 cycles per minute
• Bag size range: 17mm–40mm width x 40mm–200mm length (stick pack format)
• Max film width: 400mm
• Controls: Siemens PLC with touchscreen HMI
• Construction: stainless steel
• Filling system: top dosing augers, stainless steel

Features

• Film unwind with automatic tension control and film tracking

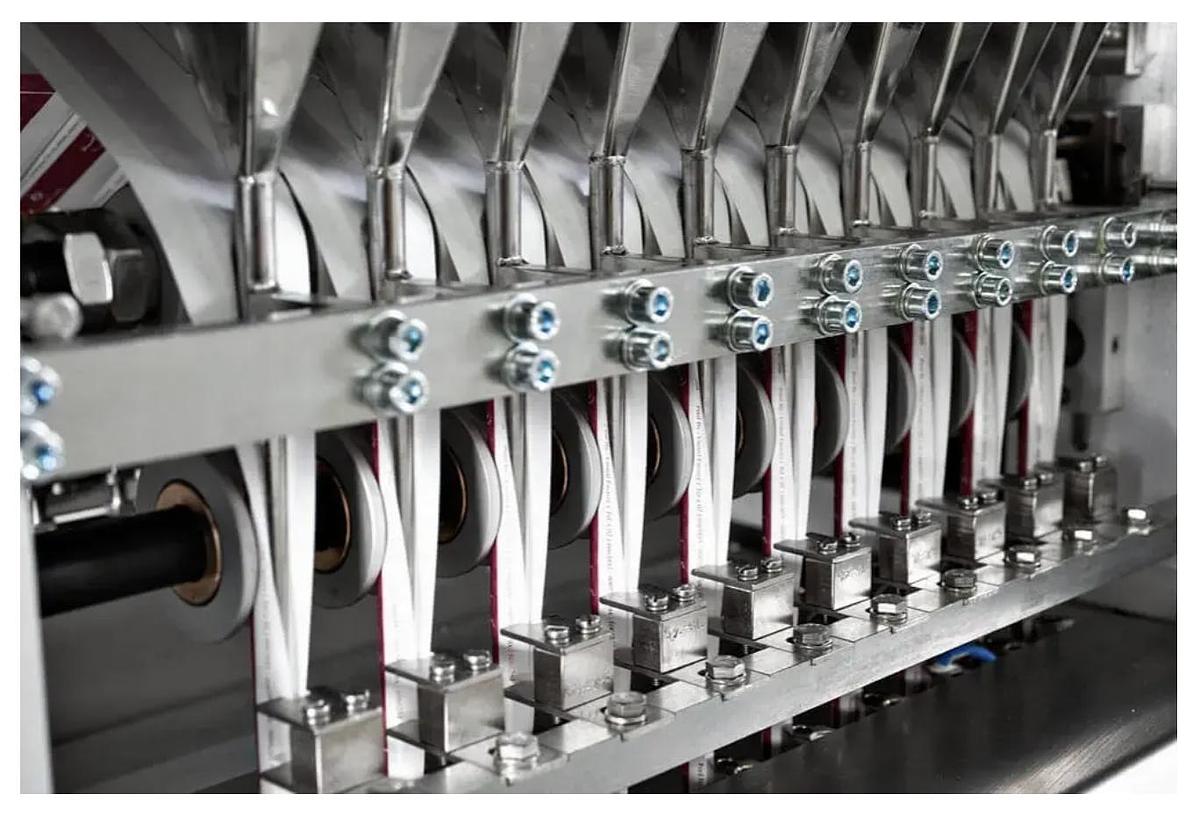

• Film slitters and forming tubes sized per bag configuration

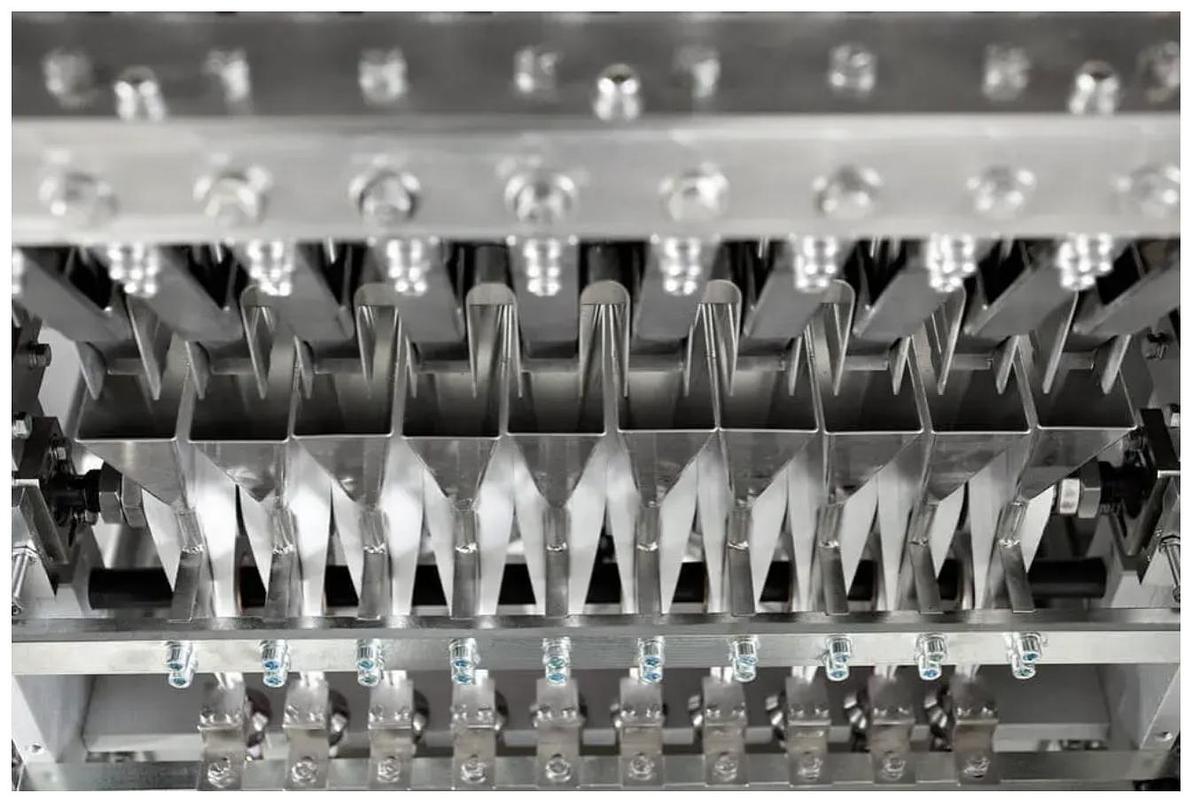

• Individual discharge chutes per lane
• Straight, zigzag, or round cut sealing options
• Easy change-over tooling for running multiple bag sizes
• Options seen on this platform: empty-stick detection/rejection, static elimination, dust suction, in-feed/out-feed conveyors, hot stamp/inkjet/thermal transfer coding

This Viking Masek ST400 is a vertical form-fill-seal (VFFS) multi-lane stick pack machine configured with 10 lanes for high-volume single-serve pouch production. Built for flexibility across product types, powders, granules, dense or fine particulates, and liquids, it's well suited for supplements, spices, drink mixes, cannabis/hemp products, nutraceuticals, and similar single-dose packaging applications.
