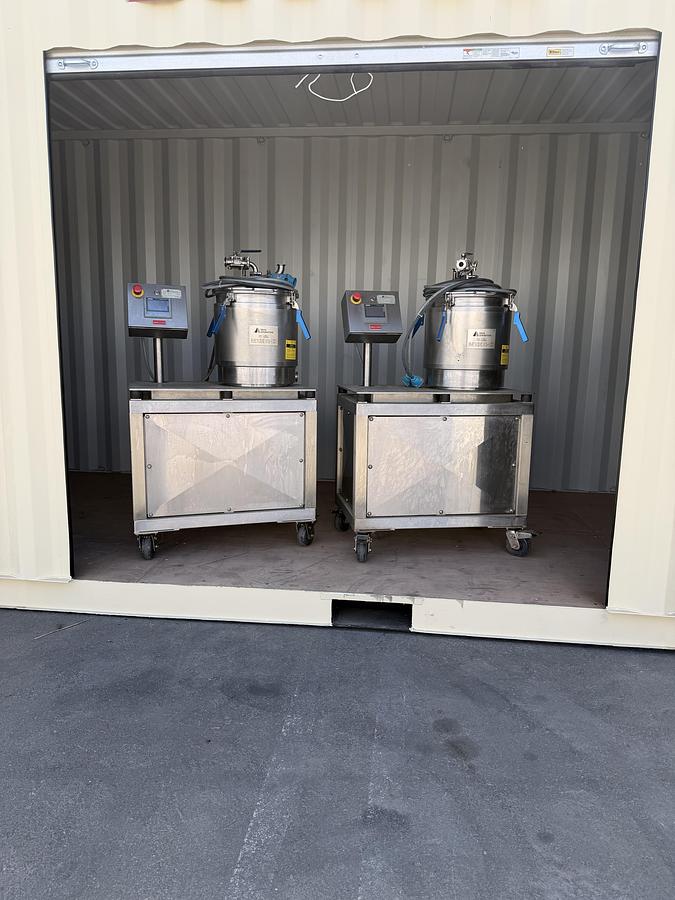

Delta Separations CUP 15 Ethanol Centrifuge

Delta Separations CUP-15 Ethanol Extraction System

Closed-loop ethanol extraction system combining cold alcohol extraction with mechanical centrifugation to efficiently isolate high-purity cannabinoid oil from plant material.

Key Specs

• Batch capacity: 8–15 lbs of plant material (depending on mill size)
• Throughput: ~300 lbs biomass per 8-hour shift
• Average run time: 10–20 minutes
• Ethanol requirement: 12–15 gallons per run
• Temperature range: -40°C to 60°C
• Variable frequency drive: 0–1,800 RPM
• Touchscreen HMI industrial control panel, dual emergency stops
• Liquid/vapor-tight vessel with EPDM lid seal, 1-gallon jacket volume
• Tri-clamp fittings for alcohol feed, discharge, and pressure relief

Dimensions

• 37"W x 25"D x 56"H (unit only)
• Approx. weight: 600–1,095 lbs (varies by source/configuration)
