UL Listed Podtronix C1D1 Booth 10x14'

UL Listed C1D1 Extraction Lab Package – Double Skin Booth

Model: HZ-B-DS-10-16-10-2L

A fully UL Listed Class I Division 1 extraction booth built for hydrocarbon and solvent-based processing, engineered for safety compliance and daily operational durability.

Construction & Finish

• Double-wall panel construction, 20-gauge galvanized steel, insulated
• Powder-coated interior/exterior for a smooth, easy-to-clean finish (bright white high gloss)
• Tongue-and-groove sidewall panel assembly for structural integrity

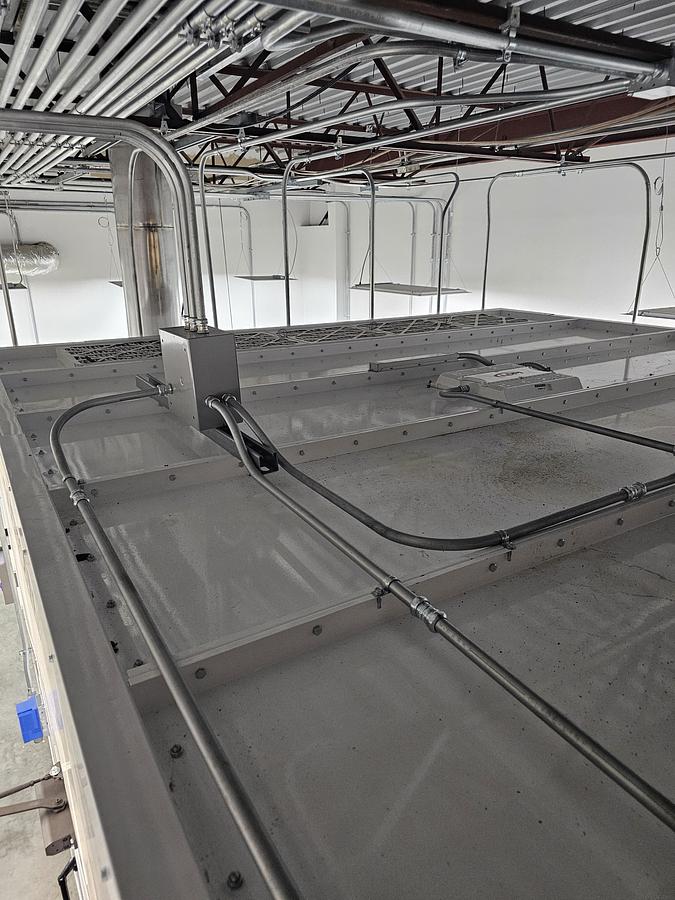

• Single-wall 18-gauge galvanized ceiling panels with 2" companion-flanged edges
• Panels pre-punched on 6" centers for straightforward nut & bolt assembly

Dimensions

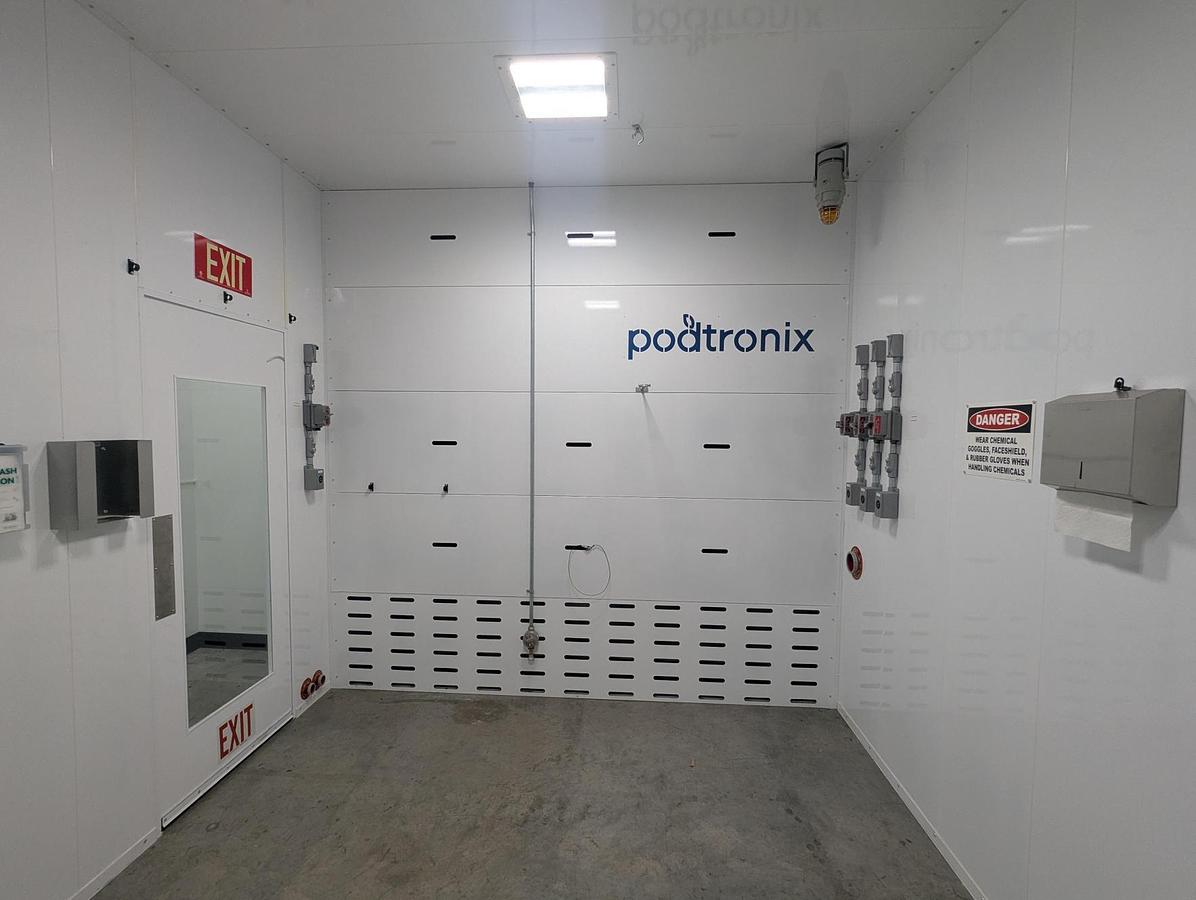

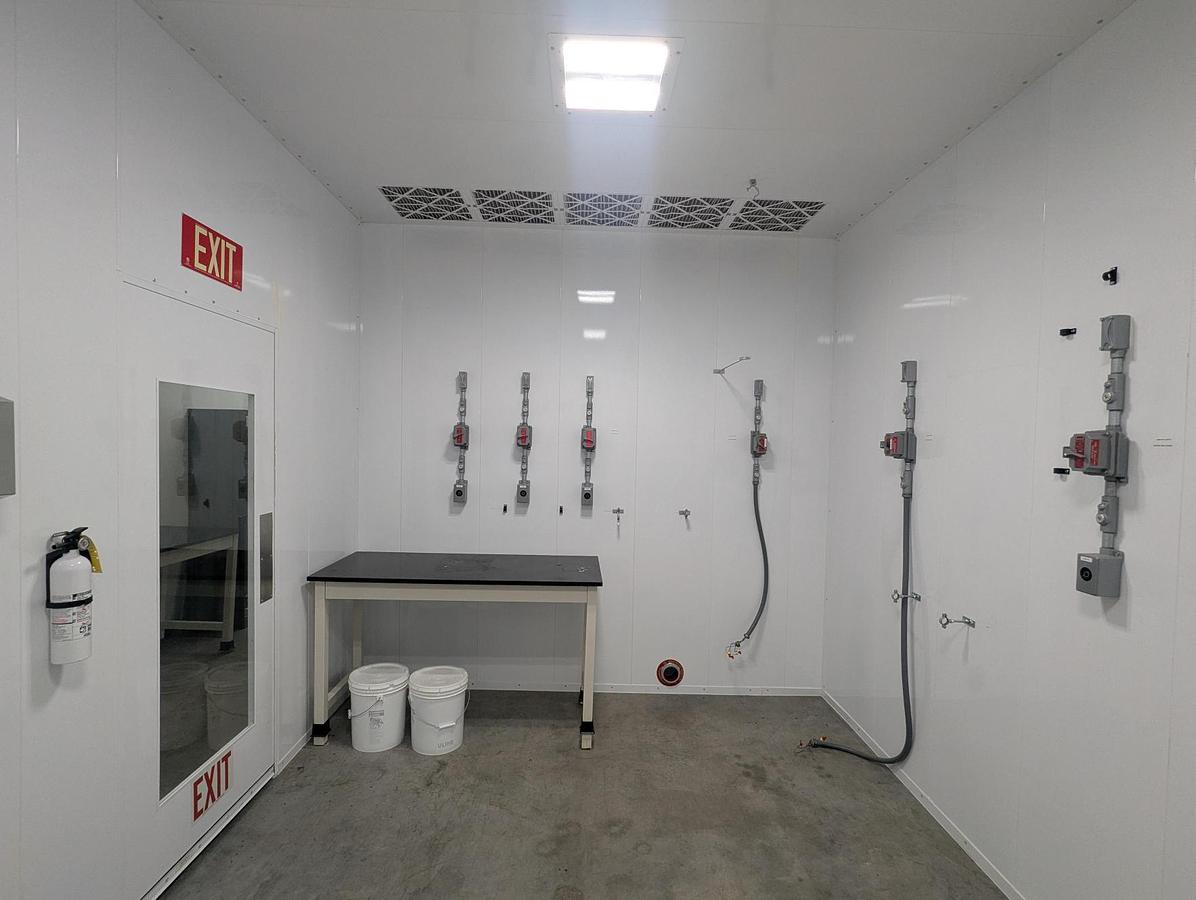

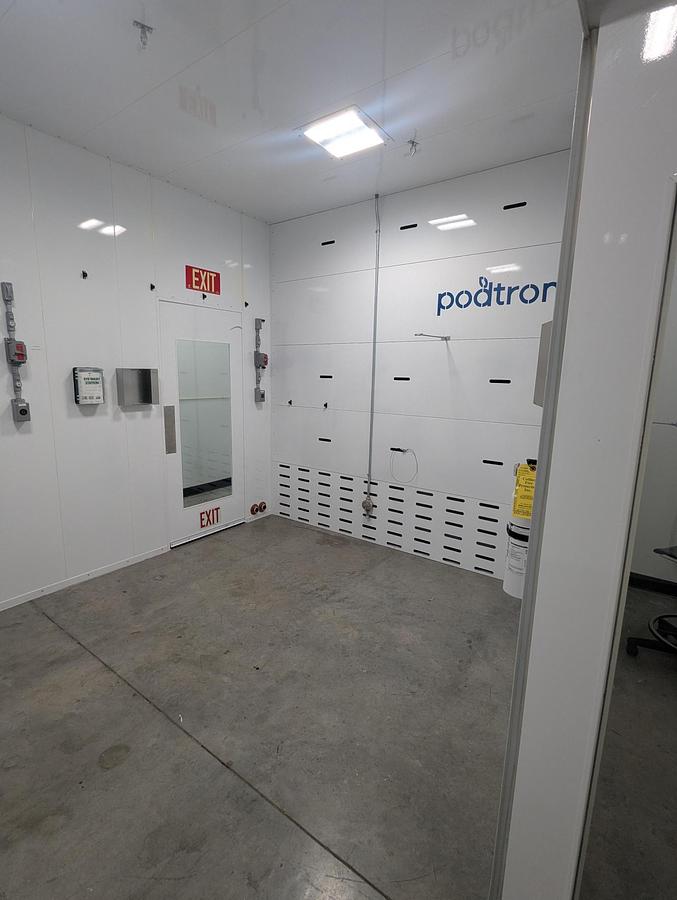

• Working interior: 9'8" W x 14' D x 10' H (135 sq. ft.)
• Overall footprint: 10' W x 16'4" D x 10'2" H (160 sq. ft.)

Safety & Compliance Equipment

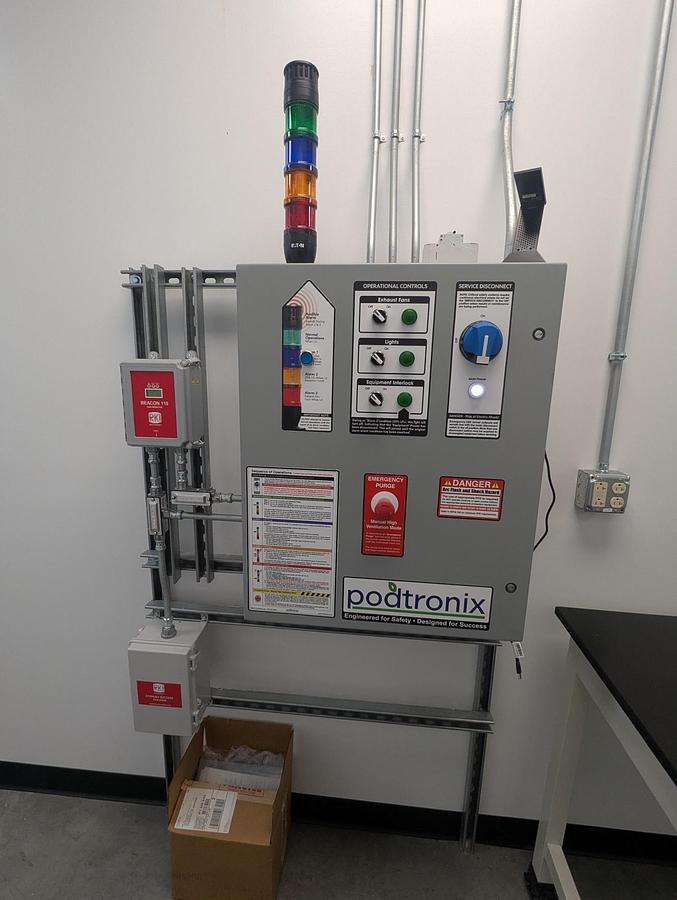

• UL Listed Control Panel with remote status beacon (208V 3-Phase, 38.6 amps)
• Hydrocarbon gas sensor mounted 4" off the floor near the exhaust system
• C1D1 strobe and alarm for interior C1D1/C1D2 environments
• Exit sign with battery backup emergency lighting
• Manual pump bottle eyewash station

Ventilation

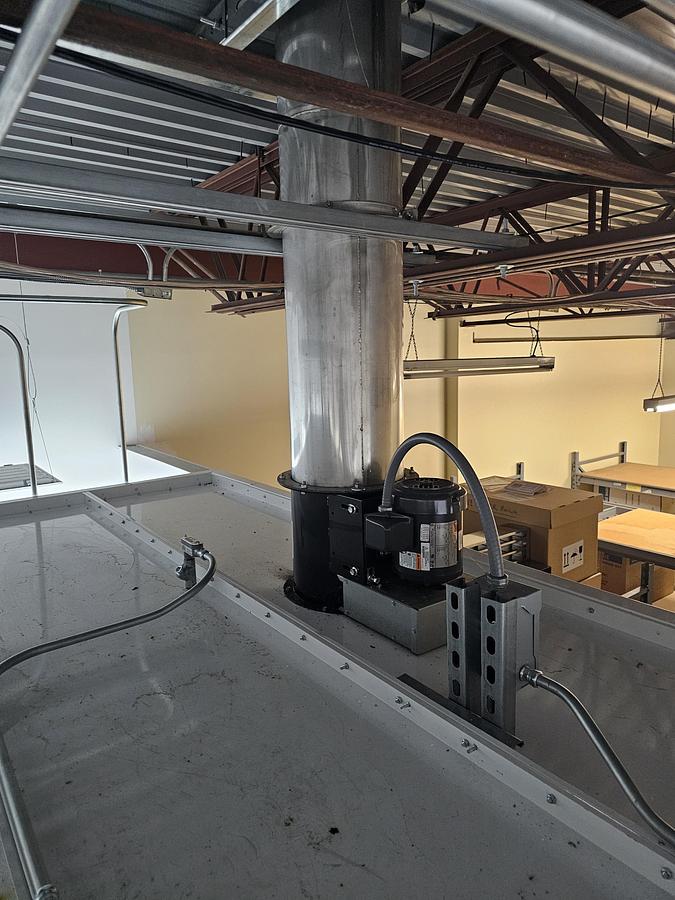

• (1) 12" TA exhaust fan, AMCA Certified Class B (spark-proof), UL & CUL Listed, 3/4 HP, two-speed motor
• Standard operation: 800–1,000 CFM (7.4 CFM/sq. ft., 44.4 air changes/hour)
• Alarm mode (20% LFL): 1,900–2,100 CFM (14.8 CFM/sq. ft., 88.8 air changes/hour)

Lighting & Access

• (2) hazardous location LED light fixtures, flush-mounted for full ceiling clearance

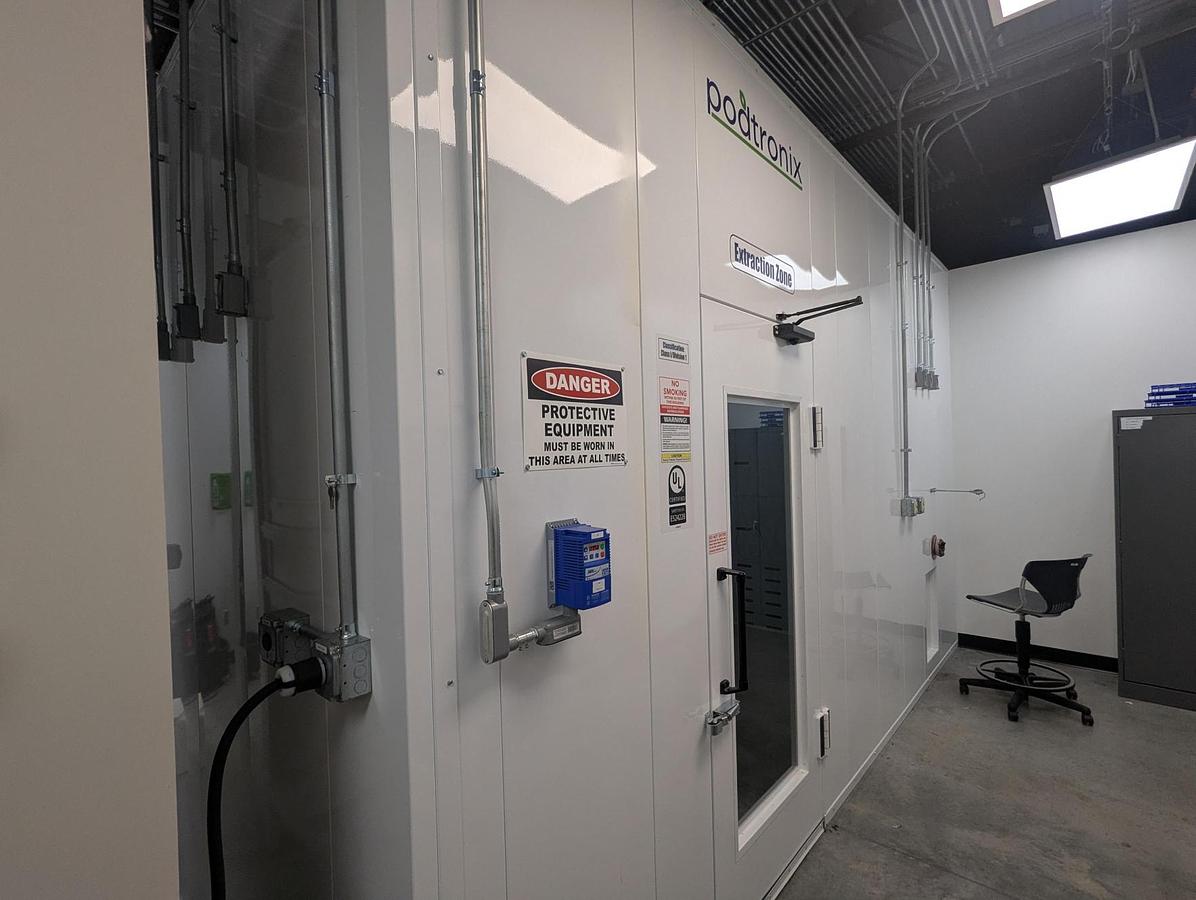

• (2) 3' wide x 7' tall operator doors with large observation windows
